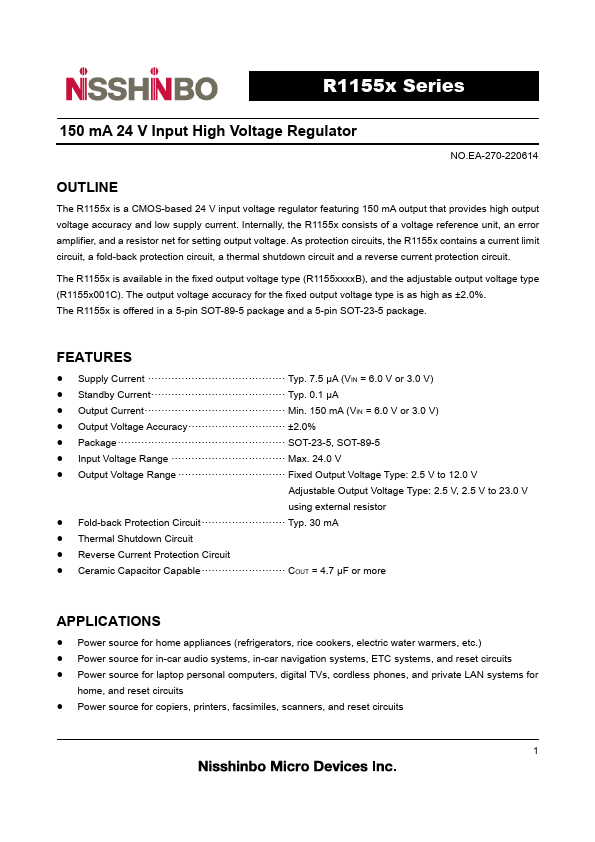

The R1155H103B by Nisshinbo is a 150mA 24V Input High Voltage Regulator. Below is the official datasheet preview.
| Part number | R1155H103B, R1155H025B |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 1.24 MB |
| Description | 150mA 24V Input High Voltage Regulator |
| Datasheet |
 R1155H025B-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: R1155H103B, R1155H025B. Please refer to the document for exact specifications by model. |
|
|

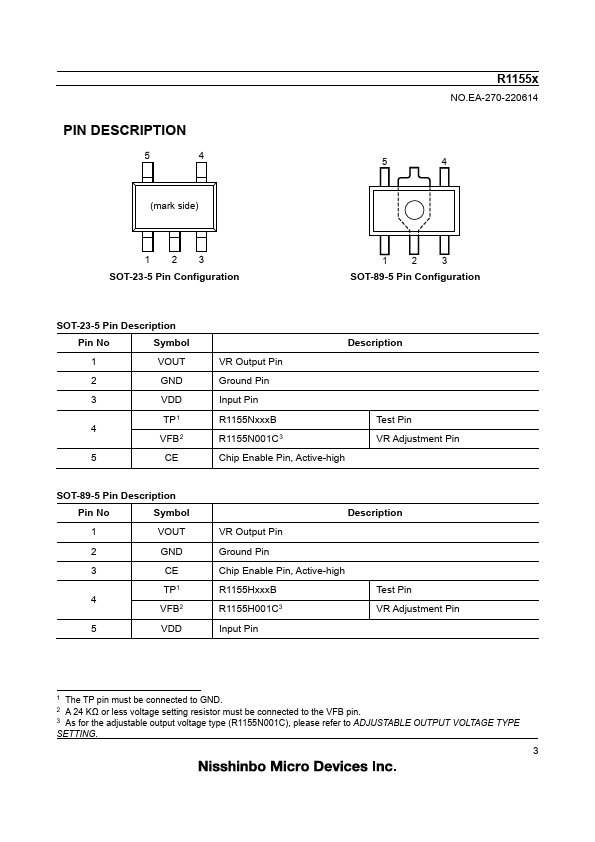

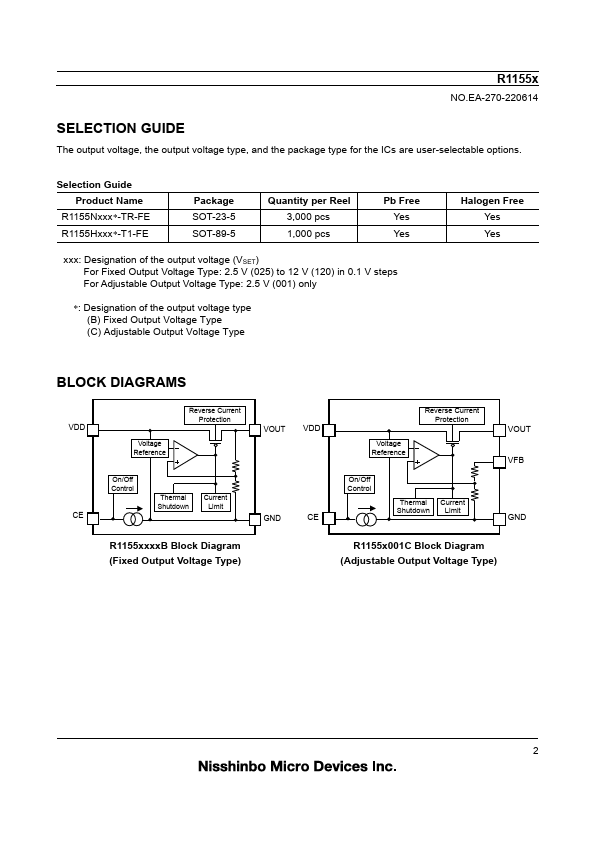

5 4 (mark side) R1155x NO.EA-270-220614 5 4 123 SOT-23-5 Pin Configuration 1 2 3 SOT-89-5 Pin Configuration SOT-23-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 VDD TP1 4 VFB2 5 CE Description VR Output Pin Ground Pin Input Pin R1155NxxxB Test Pin R1155N001C3 VR Adjustment Pin Chip Enable Pin, Active-high SOT-89-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE TP1 4 VFB2 5 VDD Description VR Output Pin Ground Pin Chip Enable Pin, Active-high R11
