R1155N025B-TR-FE - 150mA 24V Input High Voltage Regulator

📥 Download Datasheet

Preview of R1155N025B-TR-FE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number R1155N025B-TR-FE
Manufacturer Nisshinbo
File Size 1.23 MB
Description 150mA 24V Input High Voltage Regulator
Datasheet download datasheet R1155N025B-TR-FE-Nisshinbo.pdf

R1155N025B-TR-FE Product details

Description

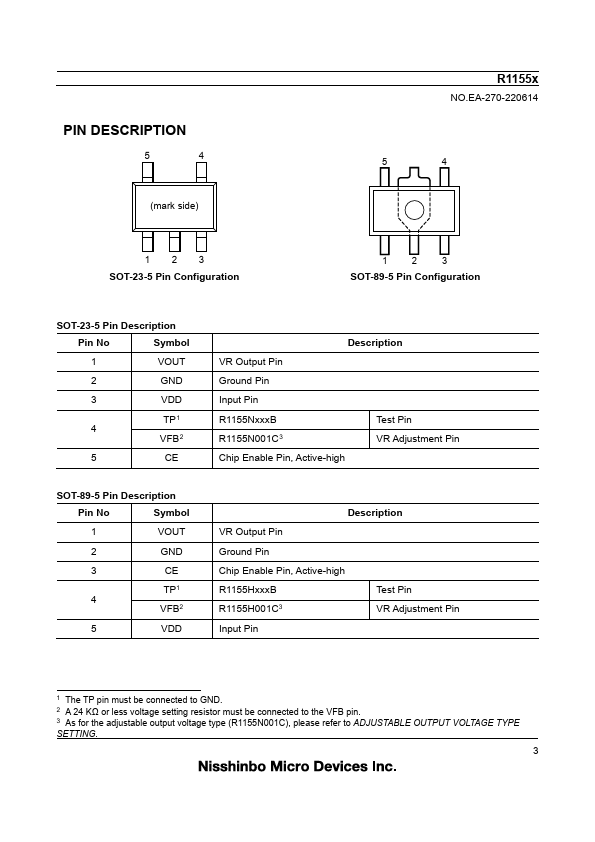

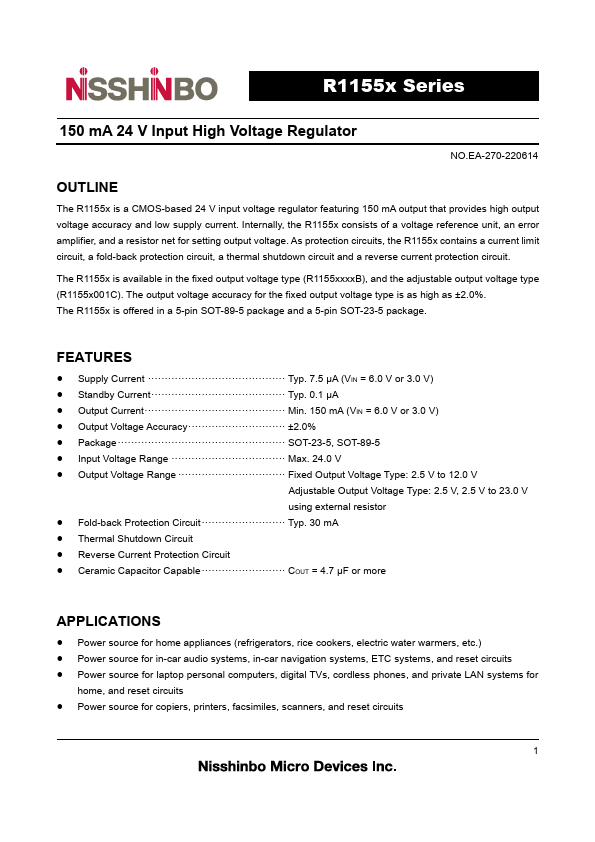

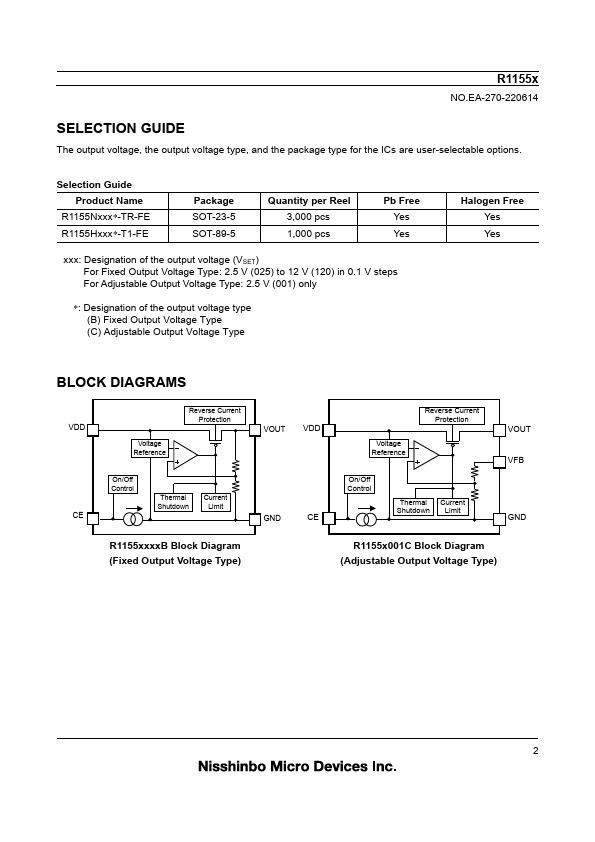

5 4 (mark side) R1155x NO.EA-270-220614 5 4 123 SOT-23-5 Pin Configuration 1 2 3 SOT-89-5 Pin Configuration SOT-23-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 VDD TP1 4 VFB2 5 CE Description VR Output Pin Ground Pin Input Pin R1155NxxxB Test Pin R1155N001C3 VR Adjustment Pin Chip Enable Pin, Active-high SOT-89-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE TP1 4 VFB2 5 VDD Description VR Output Pin Ground Pin Chip Enable Pin, Active-high R11
