R1170D - 800mA LDO REGULATOR

Nisshinbo

R1170D Datasheet Preview — Preview of R1170D PDF

Datasheet Details

Part number	R1170D
Manufacturer	Nisshinbo
File Size	278.88 KB
Description	800mA LDO REGULATOR
Datasheet	R1170D-Nisshinbo.pdf

R1170D Product details

Description

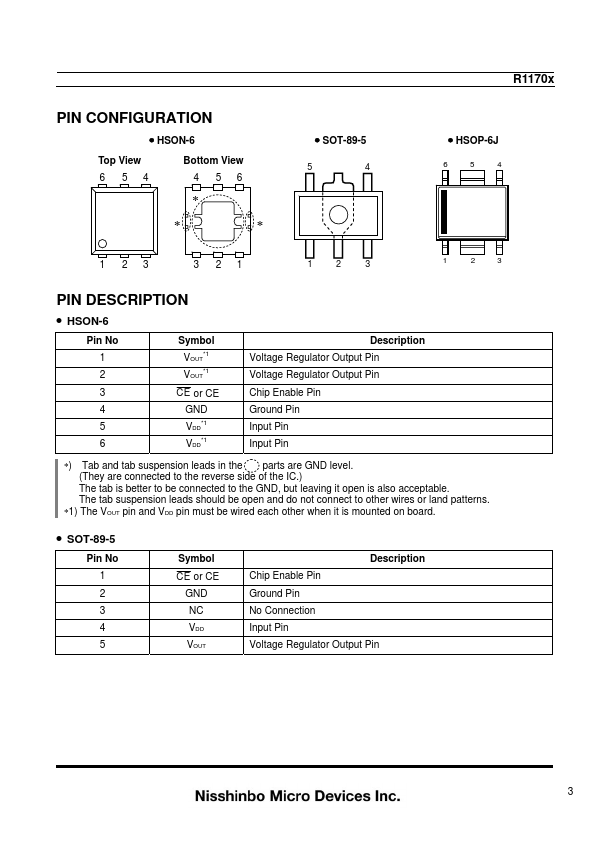

HSON-6 Pin No 1 2 3 4 5 6 Symbol VOUT 1 VOUT 1 CE or CE GND VDD 1 VDD 1 Description Voltage Regulator Output Pin Voltage Regulator Output Pin Chip Enable Pin Ground Pin Input Pin Input Pin ∗) Tab and tab suspension leads in the parts are GND level.(They are connected to the reverse side of the IC.) The tab is better to be connected to the GND, but leaving it open is also acceptable.The tab suspension leads should be open and do not connect to other wires or land p

Features

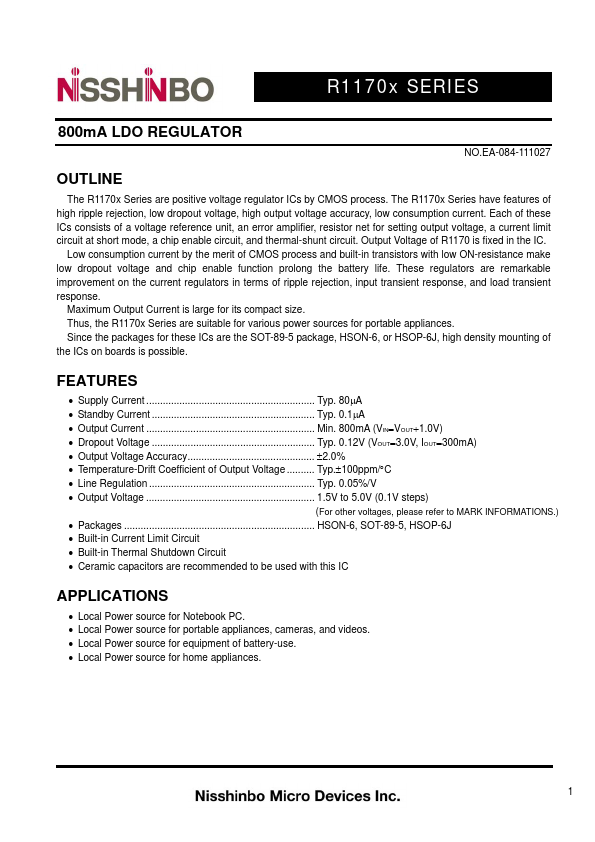

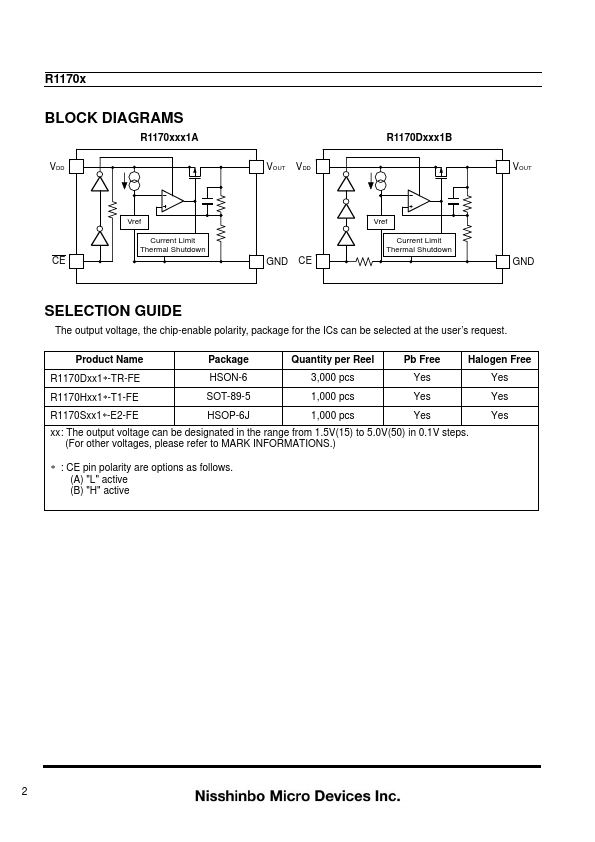

of high ripple rejection, low dropout voltage, high output voltage accuracy, low consumption current. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor net for setting output voltage, a current limit circuit at short mode, a chip enable circuit, and thermal-shunt circuit. Output Voltage of R1170 is fixed in the IC. Low consumption current by the merit of CMOS process and built-in transistors with low ON-resistance make low dropout voltage and chip enable functi.
