R1170H, R1170D 800mA LDO REGULATOR

Nisshinbo

Description

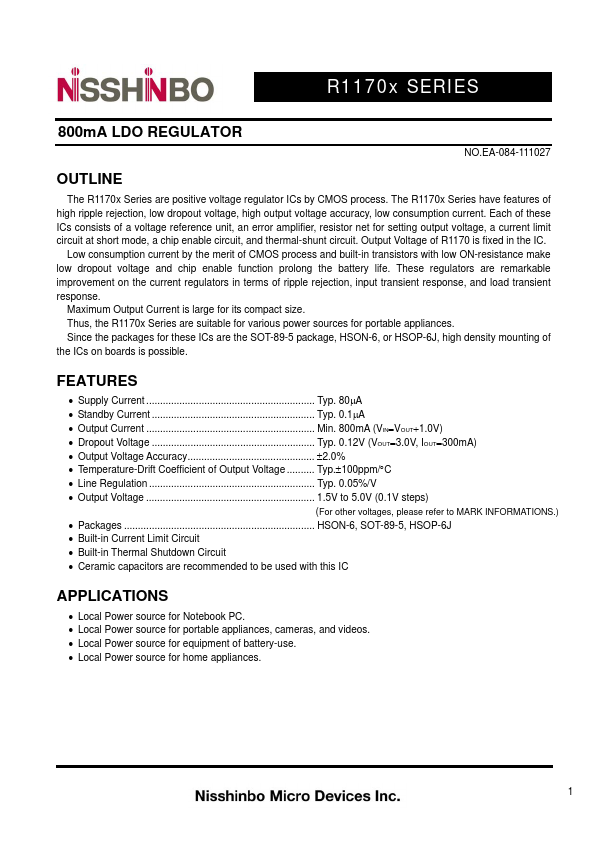

R1170x SERIES 800mA LDO REGULATOR NO.EA-084-111027 OUTLINE The R1170x Series are positive voltage regulator ICs by CMOS process.The R1170x Series .

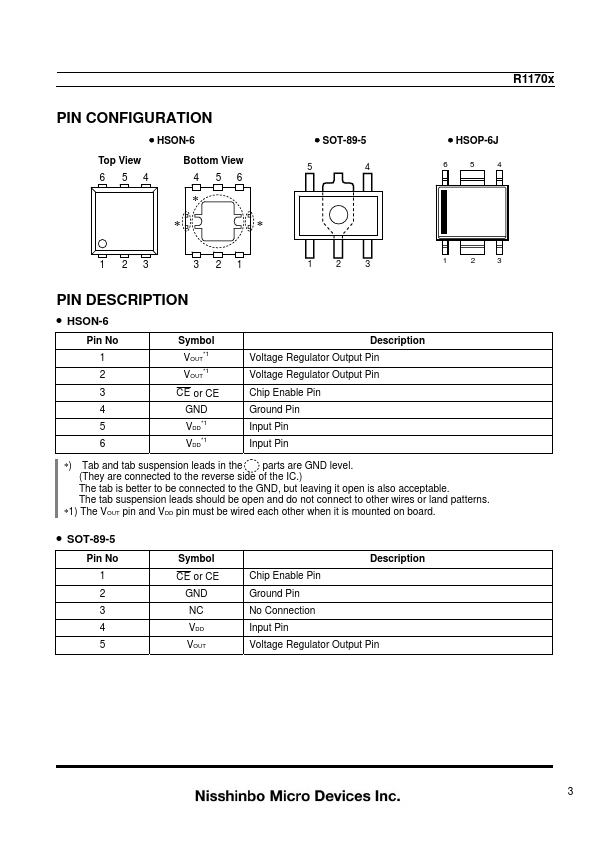

HSON-6 Pin No 1 2 3 4 5 6 Symbol VOUT. 1 VOUT. 1 CE or CE GND VDD. 1 VDD. 1 Description Voltage Regulator Output Pin Voltage.

📥 Download Datasheet

R1170H Datasheet Preview — This datasheet PDF includes multiple part numbers: R1170H, R1170D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R1170H, R1170D
Manufacturer: Nisshinbo
File Size: 278.88 KB
Datasheet: R1170D-Nisshinbo.pdf
Description: 800mA LDO REGULATOR
Note: This datasheet PDF includes multiple part numbers: R1170H, R1170D.
Please refer to the document for exact specifications by model.

Features

* of high ripple rejection, low dropout voltage, high output voltage accuracy, low consumption current. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor net for setting output voltage, a current limit circuit at short mode, a chip enable circuit, and thermal-shunt c

Applications

* Local Power source for Notebook PC.
* Local Power source for portable appliances, cameras, and videos.
* Local Power source for equipment of battery-use.

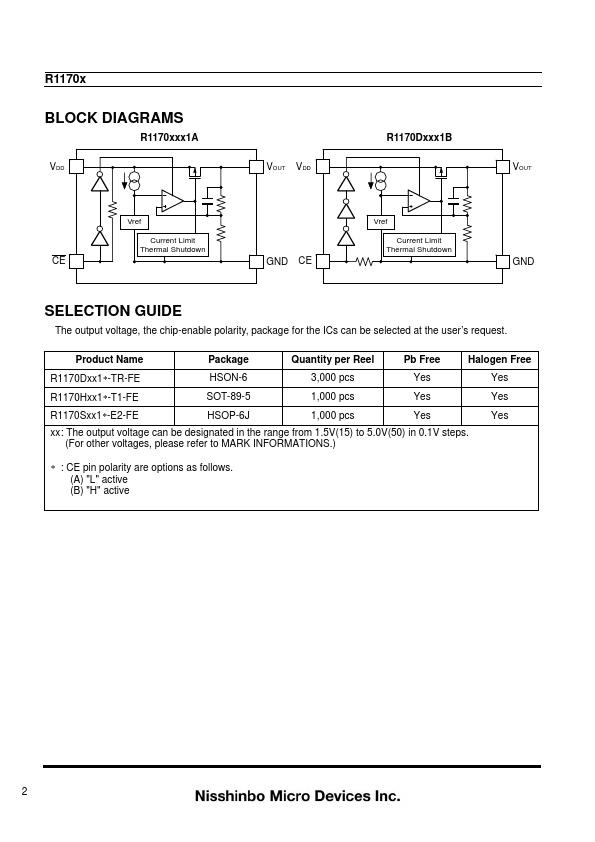

* Local Power source for home appliances. 1 R1170x BLOCK DIAGRAMS R1170xxx1A VDD VOUT VDD R1170Dxxx1B VOUT
