R1180D - 150mA LDO REGULATOR

Nisshinbo

R1180D Datasheet Preview — Preview of R1180D PDF

Datasheet Details

Part number	R1180D
Manufacturer	Nisshinbo
File Size	544.18 KB
Description	150mA LDO REGULATOR
Datasheet	R1180D-Nisshinbo.pdf

R1180D Product details

Description

SON1612-6 Pin No Symbol 1 VDD 2 GND 3 VOUT 4 NC 5 GND 6 CE or NC SC-82AB Pin No 1 2 3 4 Symbol CE or NC GND VOUT VDD SOT-23-5 Pin No 1 2 3 4 5 Symbol VDD GND CE or NC NC VOUT 1 2 1 2 3 Pin Description Input Pin Ground Pin Output pin No Connection Ground Pin Chip Enable Pin or No Connection Pin Description Chip Enable Pin or No Connection Ground Pin Output pin Input Pin Pin Description Input Pin Ground Pin Chip Enable Pin or No Connection No Connection

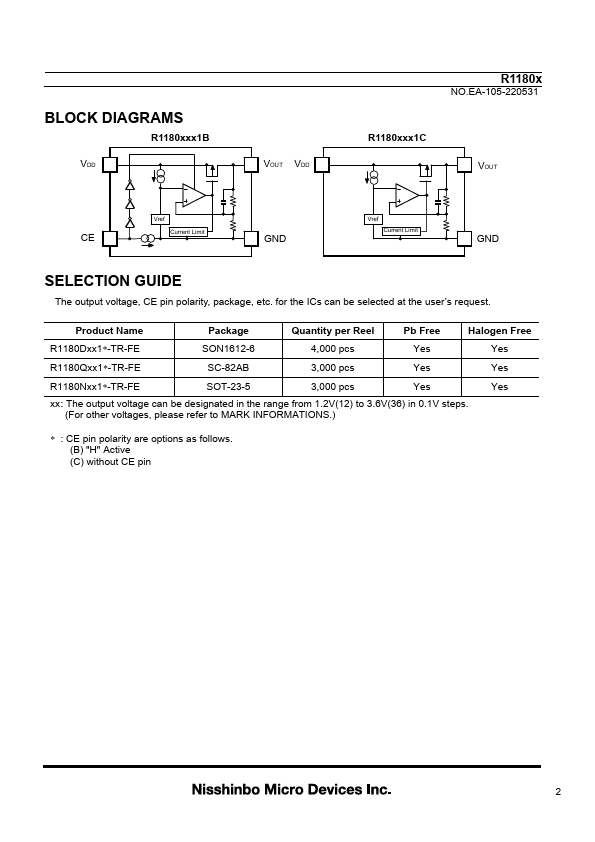

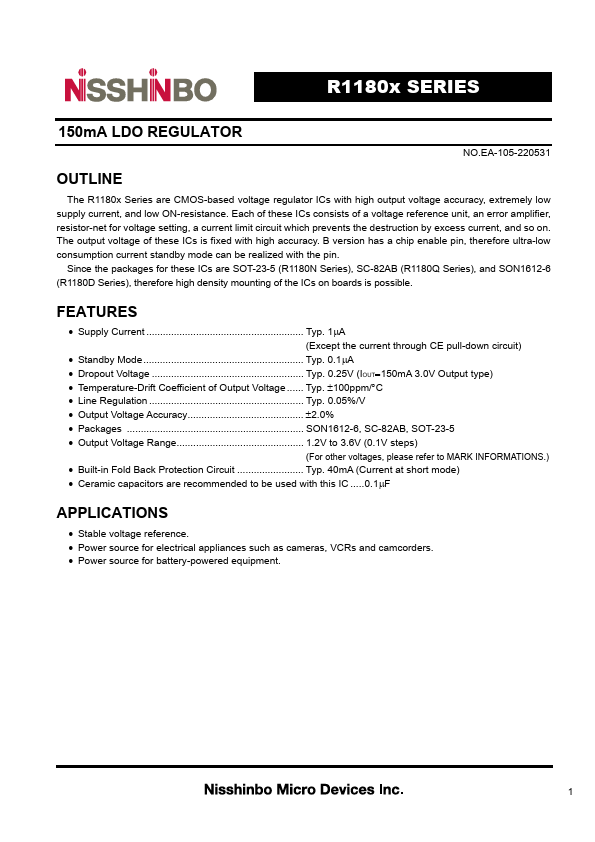

Features

Supply Current Typ. 1A (Except the current through CE pull-down circuit).
Standby Mode Typ. 0.1A.
Dropout Voltage Typ. 0.25V (IOUT150mA 3.0V Output type).
Temperature-Drift Coefficient of Output Voltage Typ. 100ppm/C.
Line Regulation Typ. 0.05%/V.
Output Voltage Accuracy 2.0%.
Packages SON1612-6, SC-82AB, SOT-23-5.
Output Voltage Range 1.2V to 3.6V (0.1V steps) (For other voltages, please refer to MARK.
