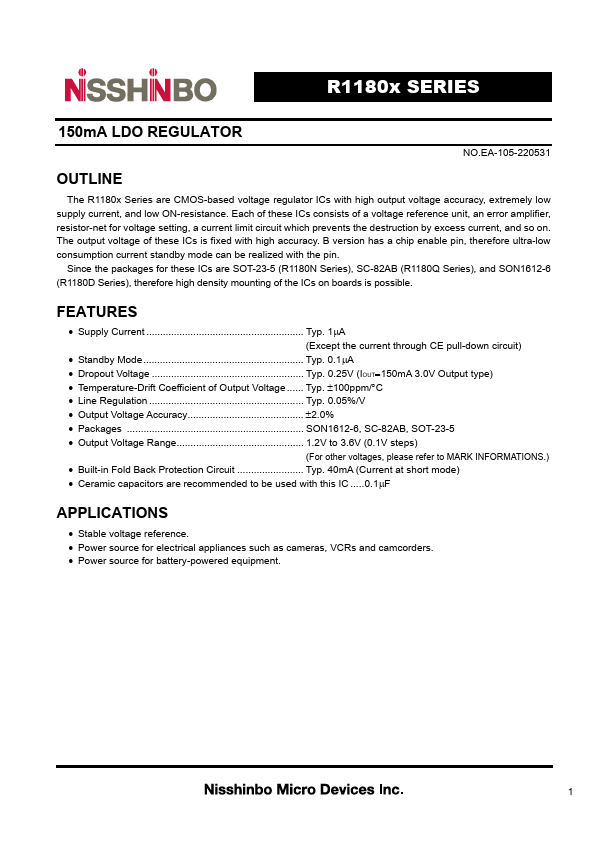

R1180N Datasheet | Nisshinbo

FEATURES - Supply Current Typ. 1A (Except the current through CE pull-down circuit) - Standby Mode Typ. 0.1A - Dropout Voltage Typ. 0.25V (IOUT150m A 3.0V Output type) - Temperature-Drift Coefficient of Output Voltage Typ. 100ppm/C - Line Regulation Typ. 0.05%/V - Output Voltage Accuracy 2.0% - Packages SON1612-6, SC-82AB, SOT-23-5 - Output Voltage Range 1.2V to 3.6V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) - Built-in Fold Back Protection Circuit Typ. 40m A (Current at short mode) - Ceramic capacitors are remended to be used with this IC...
