R1180Q, R1180D 150mA LDO REGULATOR

Nisshinbo

Description

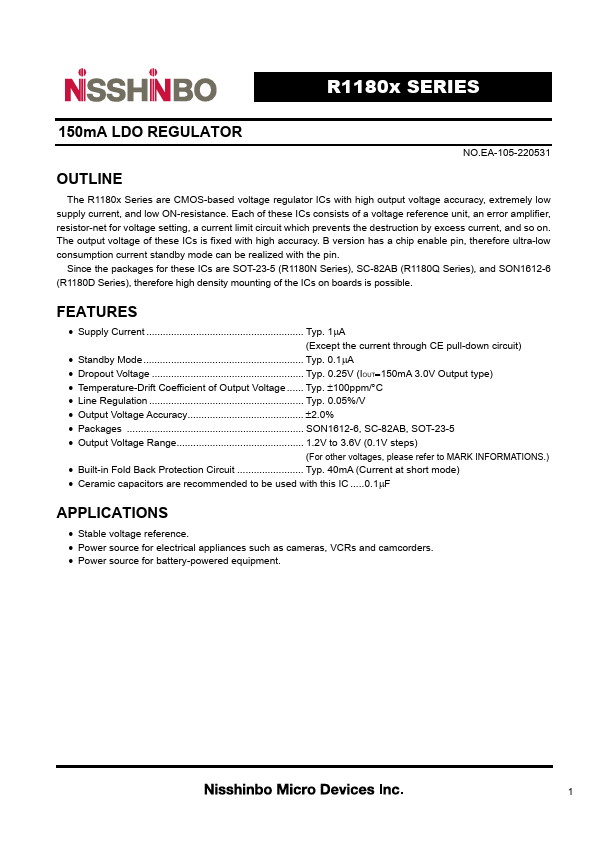

R1180x SERIES 150mA LDO REGULATOR NO.EA-105-220531 OUTLINE The R1180x Series are CMOS-based voltage regulator ICs with high output voltage accuracy.

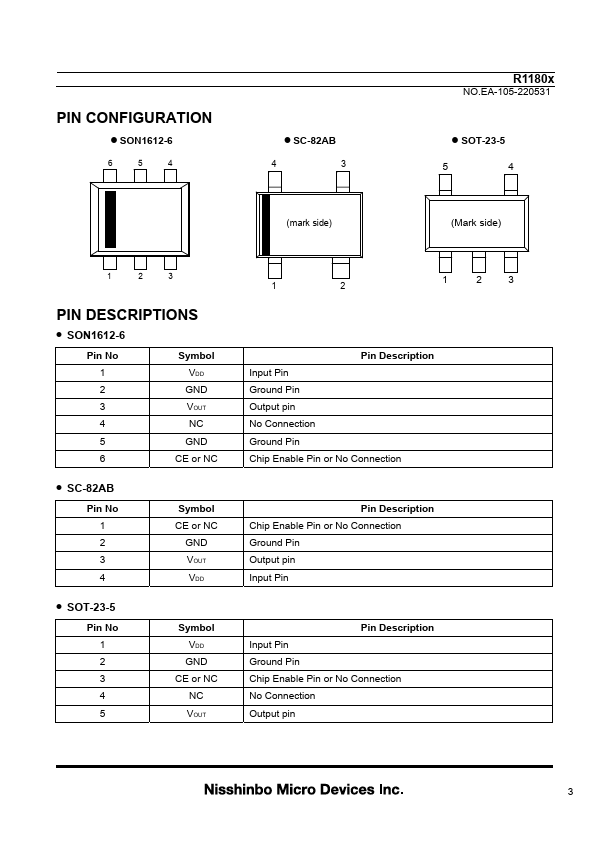

SON1612-6 Pin No Symbol 1 VDD 2 GND 3 VOUT 4 NC 5 GND 6 CE or NC. SC-82AB Pin No 1 2 3 4 Symbol CE or NC GND VOUT VDD.

📥 Download Datasheet

R1180Q Datasheet Preview — This datasheet PDF includes multiple part numbers: R1180Q, R1180D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: R1180Q, R1180D
Manufacturer: Nisshinbo
File Size: 544.18 KB
Datasheet: R1180D-Nisshinbo.pdf
Description: 150mA LDO REGULATOR
Note: This datasheet PDF includes multiple part numbers: R1180Q, R1180D.
Please refer to the document for exact specifications by model.

Features

* Supply Current Typ. 1A (Except the current through CE pull-down circuit)
* Standby Mode Typ. 0.1A
* Dropout Voltage Typ. 0.25V (IOUT150mA 3.0V Output type)
* Temperature-Drift Coefficient of Output Voltage Typ. 100ppm/C
* Line Regulation Typ. 0.05%/V
* Output Volt

Applications

* Stable voltage reference.
* Power source for electrical appliances such as cameras, VCRs and camcorders.

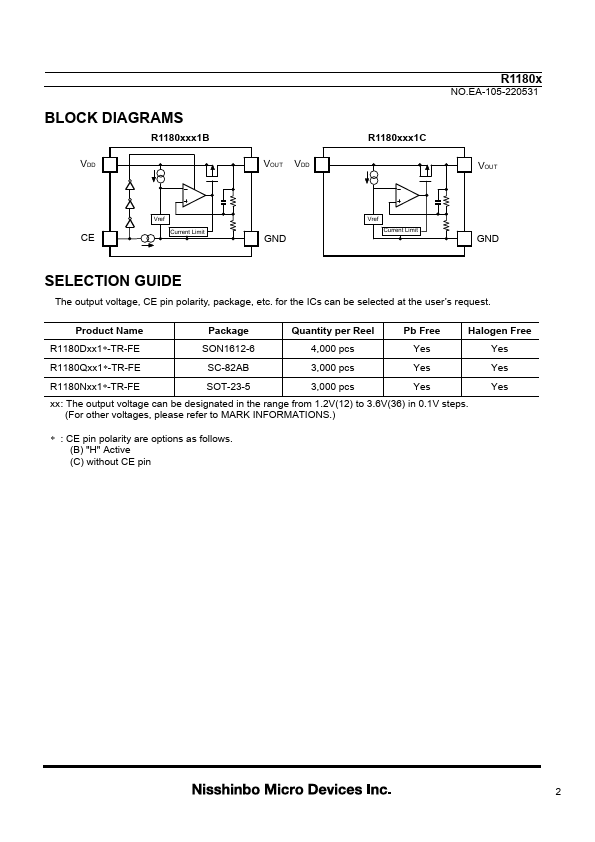

* Power source for battery-powered equipment. 1 BLOCK DIAGRAMS R1180xxx1B VDD VOUT VDD R1180x NO. EA-105-220531 R1180xxx1C VOUT CE Vref Current Limit GND Vref Current Limit
