R1213K - 2.5 APWM Step-up DC/DC Converter

Nisshinbo

📥 Download Datasheet

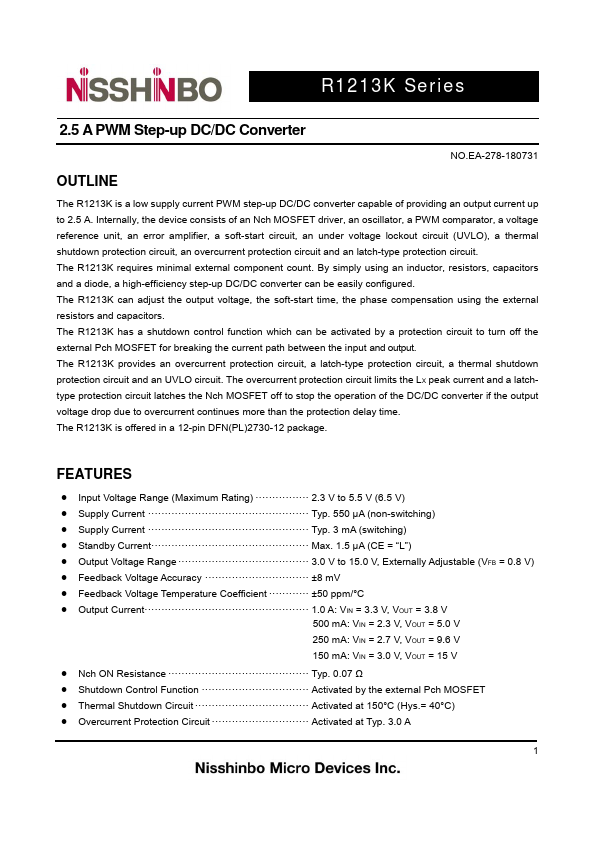

R1213K Datasheet Preview — Preview of R1213K PDF

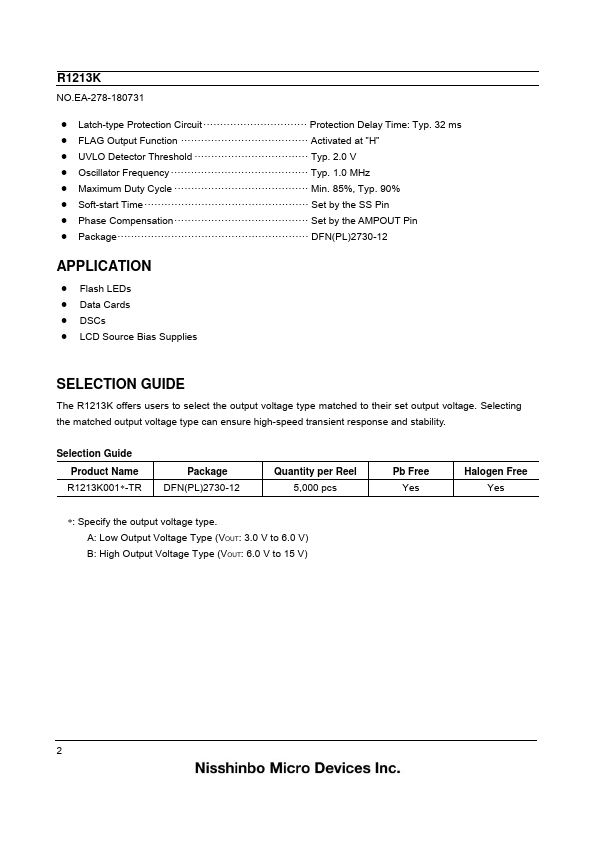

datasheet Preview Page 2

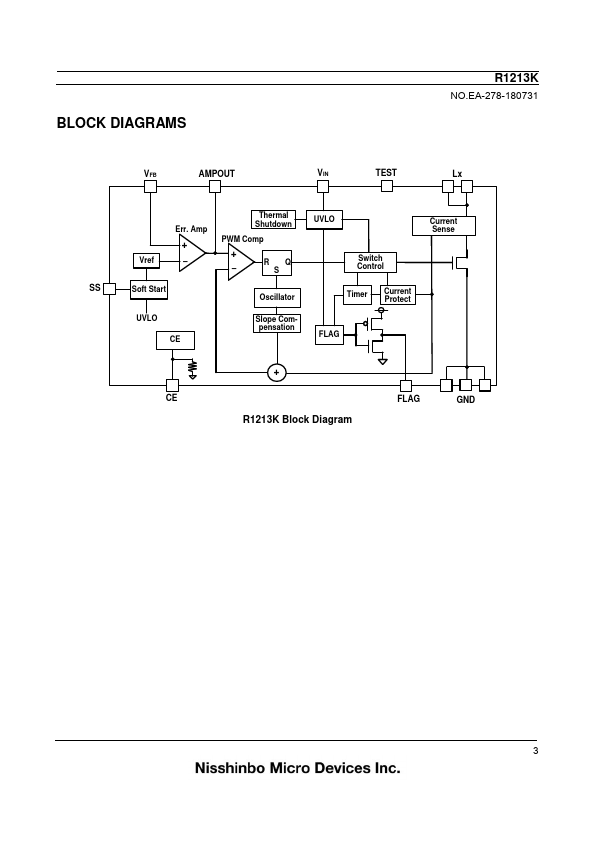

datasheet Preview Page 3

Datasheet Details

Part number	R1213K
Manufacturer	Nisshinbo
File Size	924.78 KB
Description	2.5 APWM Step-up DC/DC Converter
Datasheet	R1213K-Nisshinbo.pdf

R1213K Product details

Features

Input Voltage Range (Maximum Rating).
2.3 V to 5.5 V (6.5 V).
Supply Current.
Typ. 550 µA (non-switching).
Supply Current.
