R1513S - 36V 300mA Voltage Regulator

Nisshinbo

R1513S Datasheet Preview — Preview of R1513S PDF

Datasheet Details

Part number	R1513S
Manufacturer	Nisshinbo
File Size	919.35 KB
Description	36V 300mA Voltage Regulator
Datasheet	R1513S-Nisshinbo.pdf

R1513S Product details

Description

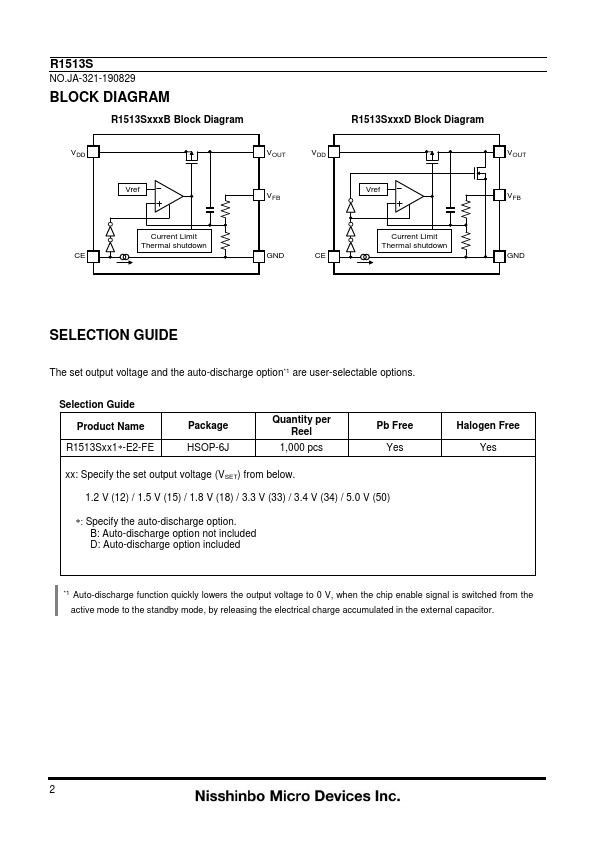

6 5 4 R1513S NO.JA-321-190829 1 2 3 HSOP-6J Pin Configuration HSOP-6J Pin Description Pin No.Symbol 1 VOUT 2 GND 1 3 VFB 4 CE 5 GND 1 6 VDD Description Output Pin Ground Pin Feedback Pin Chip Enable Pin, Active-high Ground Pin Input Pin 1 The GND pins must be wired together when they are mounted on board.

Features

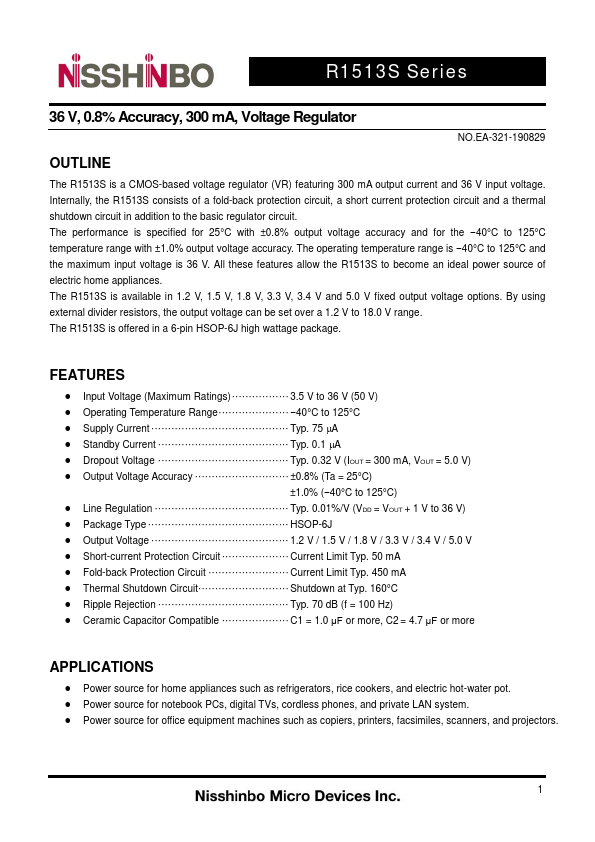

allow the R1513S to become an ideal power source of electric home appliances. The R1513S is available in 1.2 V, 1.5 V, 1.8 V, 3.3 V, 3.4 V and 5.0 V fixed output voltage options. By using external divider resistors, the output voltage can be set over a 1.2 V to 18.0 V range. The R1513S is offered in a 6-pin HSOP-6J high wattage package.
