R1516H - 150mA 36V Input LDO Regulator

Product Overview

Nisshinbo

Datasheet Details

Part number	R1516H
Manufacturer	Nisshinbo
File Size	396.32 KB
Description	150mA 36V Input LDO Regulator
Datasheet	R1516H Datasheet
Additional preview pages of the R1516H datasheet.

Product details

Description

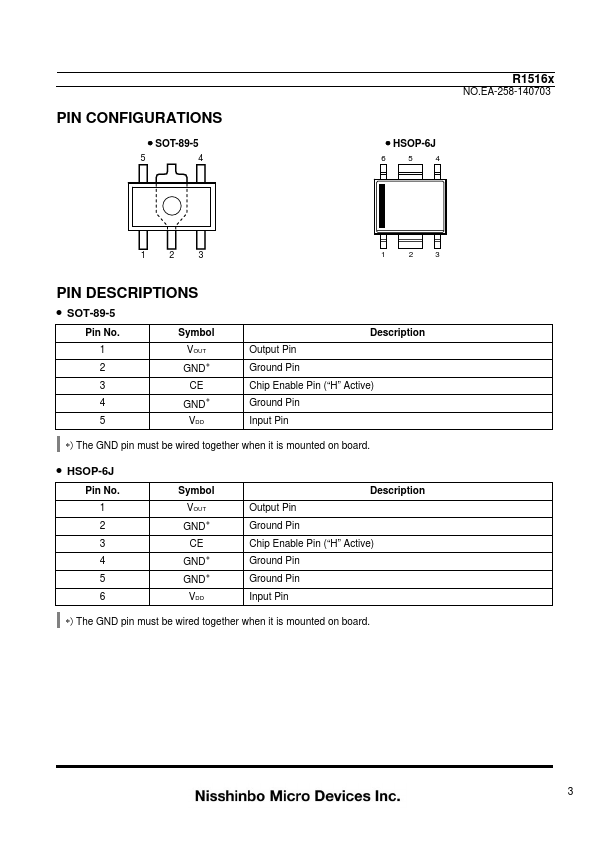

SOT-89-5 Pin No.Symbol 1 VOUT 2 GND∗ 3 CE 4 GND∗ 5 VDD Description Output Pin Ground Pin Chip Enable Pin (“H” Active) Ground Pin Input Pin ∗) The GND pin must be wired together when it is mounted on board. HSOP-6J Pin No.1 2 3 4 5 6 Symbol VOUT GND∗ CE GND∗ GND∗ VDD Description Output Pin Ground Pin Chip Enable Pin (“H” Active) Ground Pin Ground Pin Input Pin ∗) The GND pin must be wired together when it is mounted on board.3 R1516x NO.EA-258-140703 A

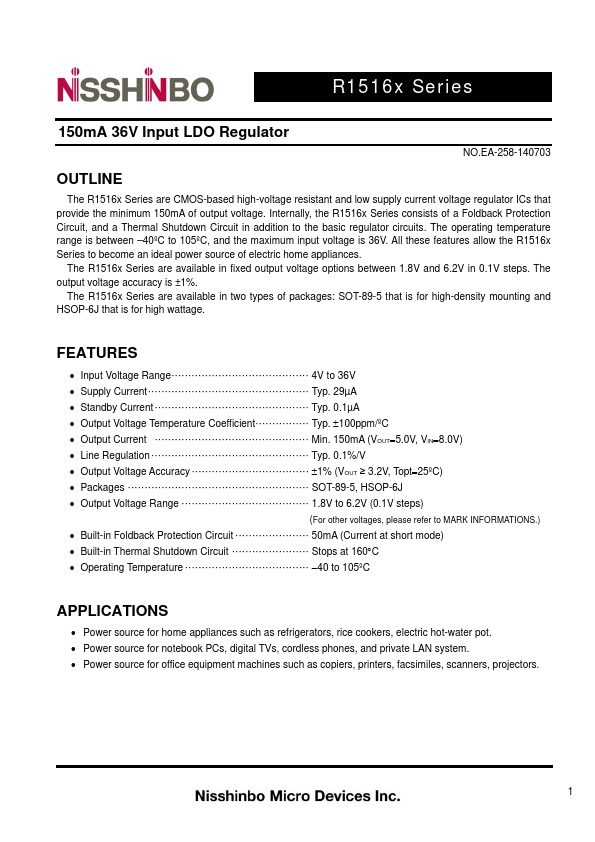

Features

allow the R1516x Series to become an ideal power source of electric home appliances. The R1516x Series are available in fixed output voltage options between 1.8V and 6.2V in 0.1V steps. The output voltage accuracy is ±1%. The R1516x Series are available in two types of packages: SOT-89-5 that is for high-density mounting and HSOP-6J that is for high wattage.
