R1518J, R1518S 1A 36V Input Low Supply Current LDO

📥 Download Datasheet  Datasheet Preview Page 1

Description

R1518x Series AEC-Q100 Compliant 1 A 36V Input Low Supply Current LDO for Automotive Applications NO.EC-329-230124 OUTLINE R1518x is a CMOS-based LDO .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1518J, R1518S. Please refer to the document for exact specifications by model.

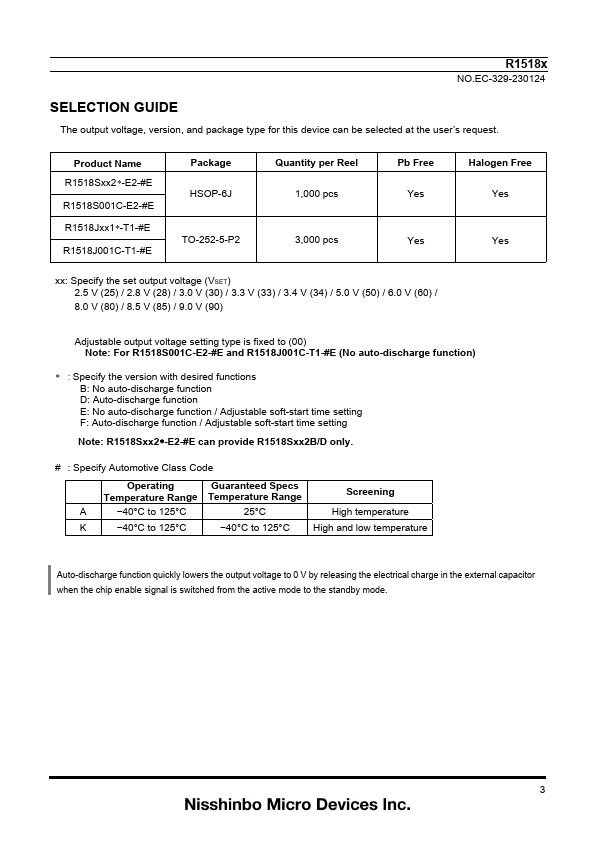

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
R1518J, R1518S
Manufacturer
Nisshinbo
File Size
2.41 MB
Datasheet
R1518S-Nisshinbo.pdf
Description
1A 36V Input Low Supply Current LDO
Note
This datasheet PDF includes multiple part numbers: R1518J, R1518S.
Please refer to the document for exact specifications by model.

Features

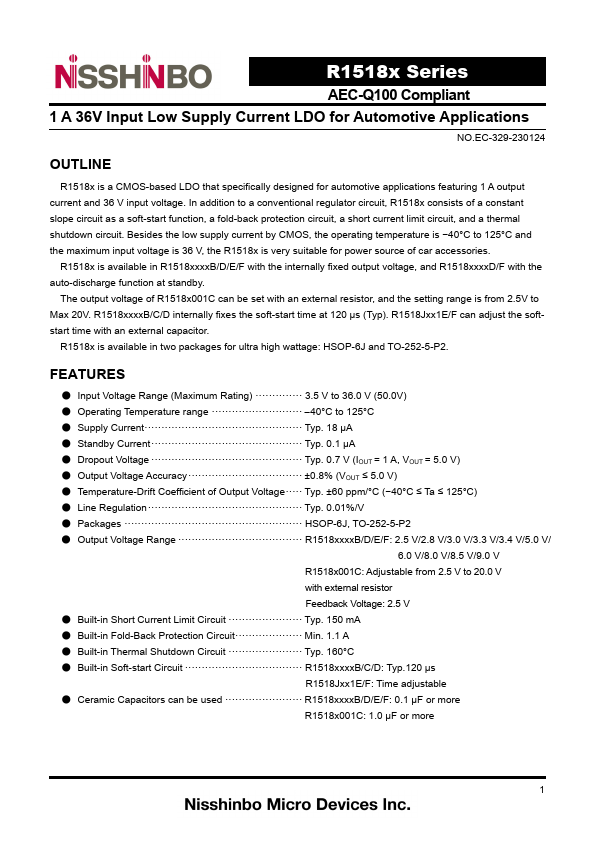

* Input Voltage Range (Maximum Rating) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3.5 V to 36.0 V (50.0V)
* Operating Temperature range ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 40°C to 125°C
* Supply Currentꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 18 µA
* Standby Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ

Applications

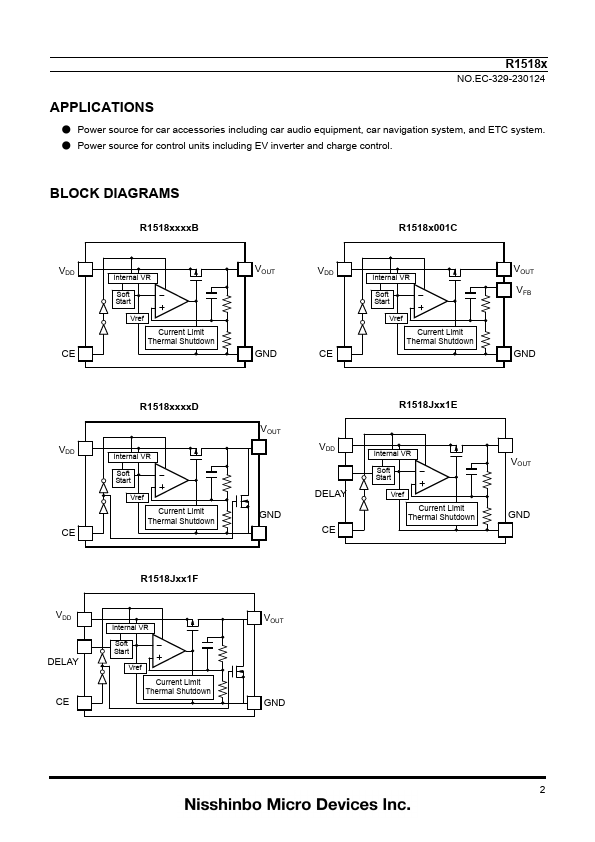

* NO. EC-329-230124 OUTLINE R1518x is a CMOS-based LDO that specifically designed for automotive applications featuring 1 A output current and 36 V input voltage. In addition to a conventional regulator circuit, R1518x consists of a constant slope circuit as a soft-start function, a fold-back protectio
