RE5RE VOLTAGE REGULATOR

Nisshinbo

Description

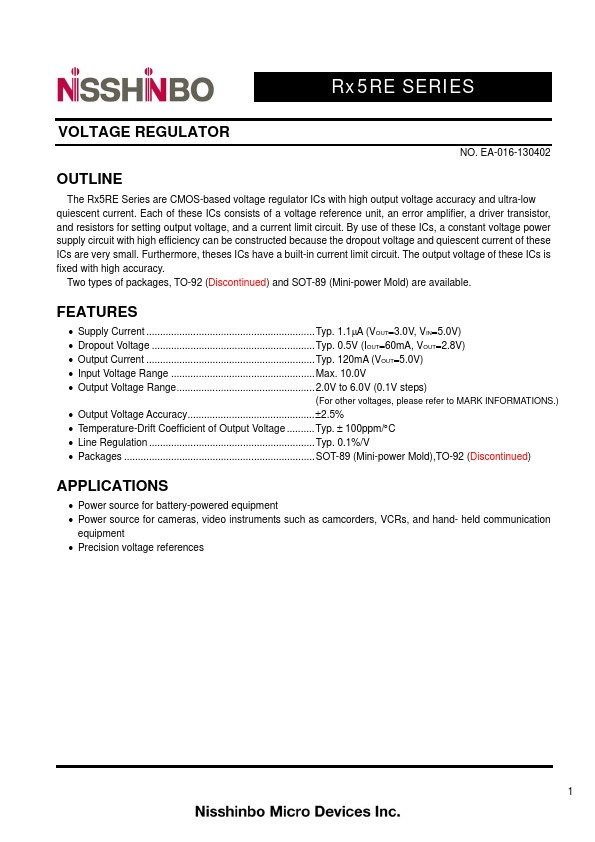

Rx5RE SERIES VOLTAGE REGULATOR NO.EA-016-130402 OUTLINE The Rx5RE Series are CMOS-based voltage regulator ICs with high output voltage accuracy an.

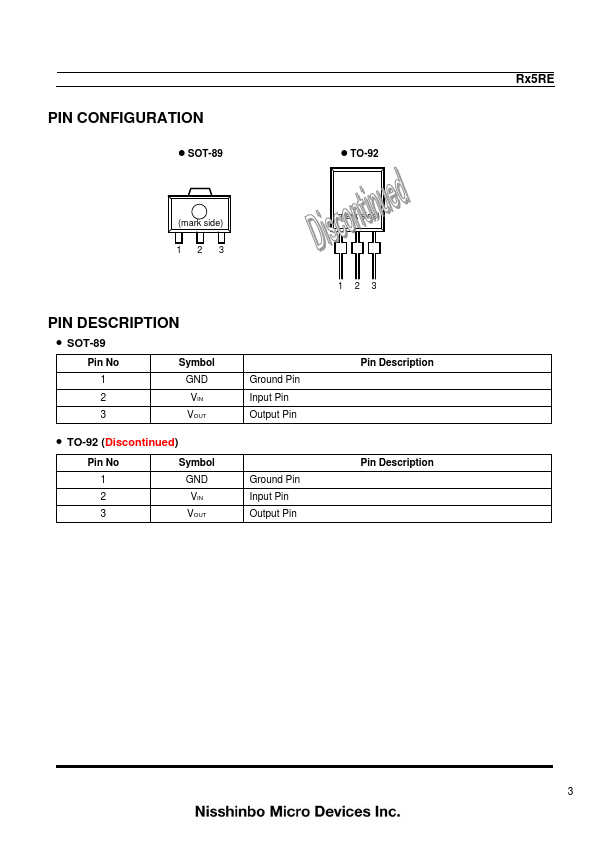

SOT-89 Pin No 1 2 3 Symbol GND VIN VOUT. TO-92 (Discontinued) Pin No 1 2 3 Symbol GND VIN VOUT Ground Pin Input Pin Output Pi.

📥 Download Datasheet

RE5RE Datasheet Preview — Preview of RE5RE PDF

Datasheet Specifications

Part number: RE5RE
Manufacturer: Nisshinbo
File Size: 283.98 KB
Datasheet: RE5RE-Nisshinbo.pdf
Description: VOLTAGE REGULATOR

Features

* Supply Current Typ. 1.1μA (VOUT=3.0V, VIN=5.0V)
* Dropout Voltage Typ. 0.5V (IOUT=60mA, VOUT=2.8V)
* Output Current Typ. 120mA (VOUT=5.0V)
* Input Voltage Range Max. 10.0V
* Output Voltage Range 2.0V to 6.0V (0.1V steps) (For other voltages, please refer

Applications

* Power source for battery-powered equipment
* Power source for cameras, video instruments such as camcorders, VCRs, and hand- held communication equipment

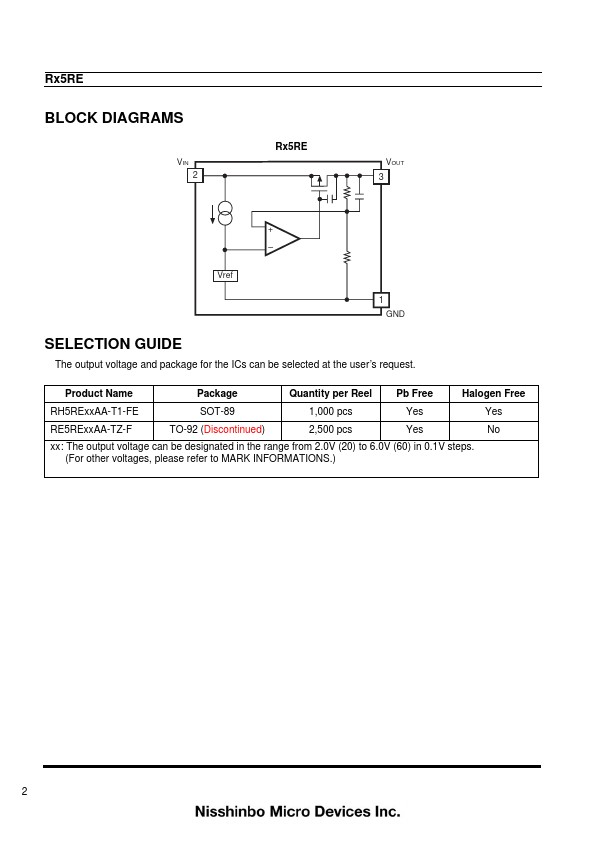

* Precision voltage references 1 Rx5RE BLOCK DIAGRAMS VIN 2 Rx5RE VOUT 3 +
* Vref 1 GND SELECTION GUIDE T
