RP100K - LOW NOISE 200mA LDO REGULATOR

RP100K Description

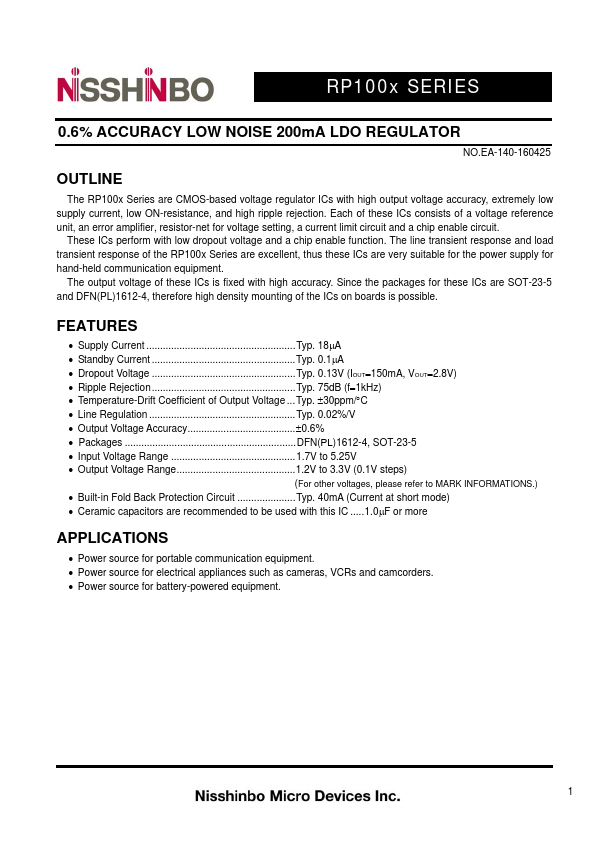

RP100x SERIES 0.6% ACCURACY LOW NOISE 200mA LDO REGULATOR NO.EA-140-160425 OUTLINE The RP100x Series are CMOS-based voltage regulator ICs with high ou.

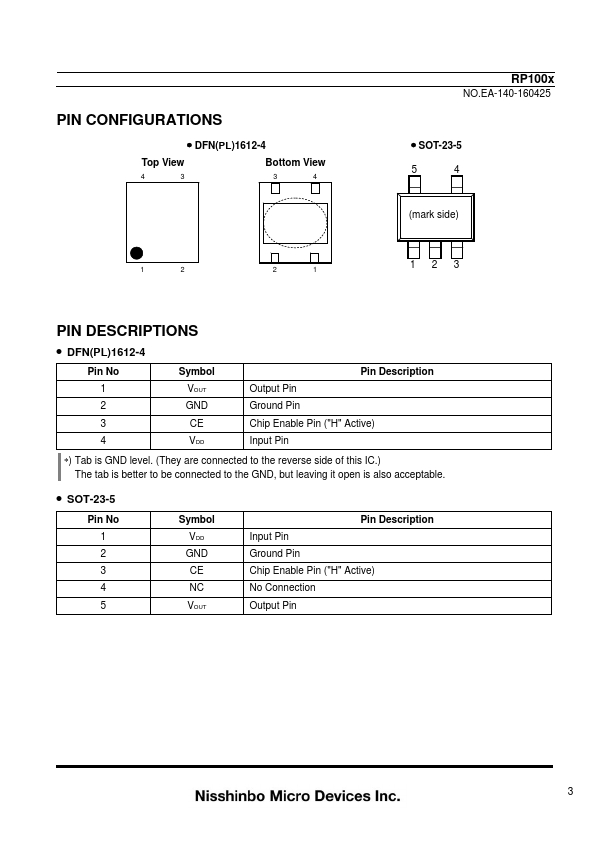

DFN(PL)1612-4 Pin No 1 2 3 4 Symbol VOUT GND CE VDD Pin Description Output Pin Ground Pin Chip Enable Pin ("H" Active) Input Pin ∗) Tab.

RP100K Features

* Supply Current Typ. 18μA
* Standby Current Typ. 0.1μA
* Dropout Voltage Typ. 0.13V (IOUT=150mA, VOUT=2.8V)
* Ripple Rejection Typ. 75dB (f=1kHz)
* Temperature-Drift Coefficient of Output Voltage Typ. ±30ppm/°C
* Line Regulation Typ. 0.02%/V

RP100K Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.

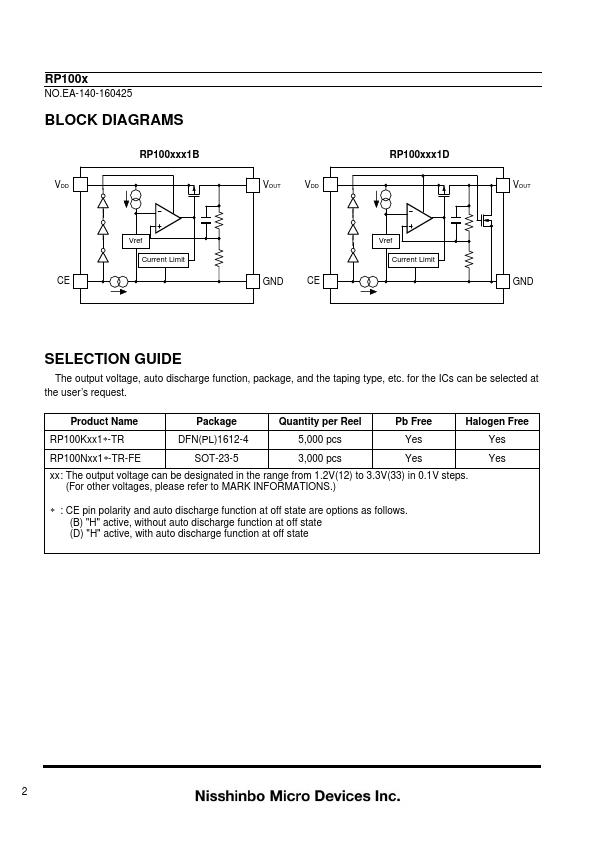

* Power source for battery-powered equipment. 1 RP100x NO. EA-140-160425 BLOCK DIAGRAMS RP100xxx1B VDD Vref Current Limit CE VOUT VDD GND CE
