RP102K Datasheet | Nisshinbo

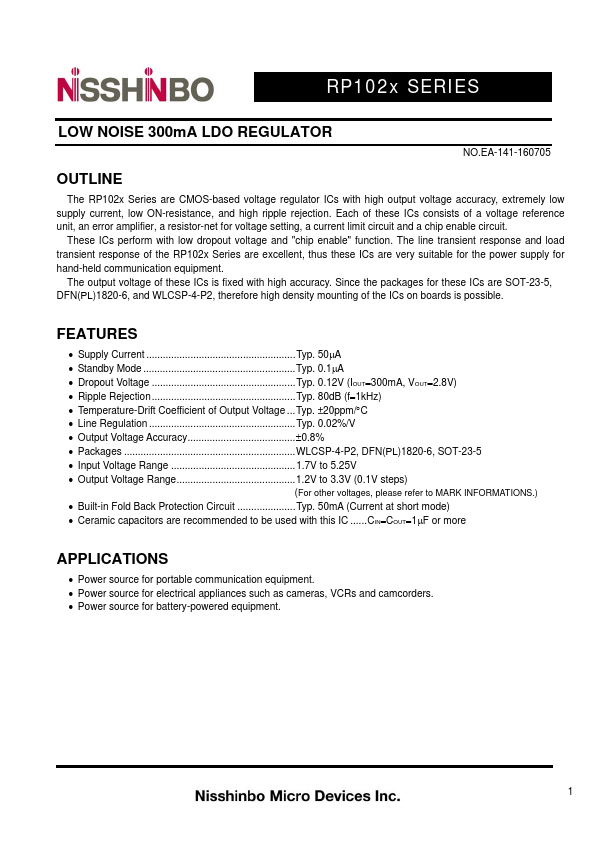

FEATURES - Supply Current Typ. 50A - Standby Mode Typ. 0.1A - Dropout Voltage Typ. 0.12V (IOUT300m A, VOUT2.8V) - Ripple Rejection Typ. 80d B (f1k Hz) - Temperature-Drift Coefficient of Output Voltage ...Typ. ±20ppm/C - Line Regulation Typ. 0.02%/V - Output Voltage Accuracy 0.8% - Packages WLCSP-4-P2, DFN(PL)1820-6, SOT-23-5 - Input Voltage Range 1.7V to 5.25V - Output Voltage Range 1.2V to 3.3V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) - Built-in Fold Back Protection Circuit Typ....
