Description

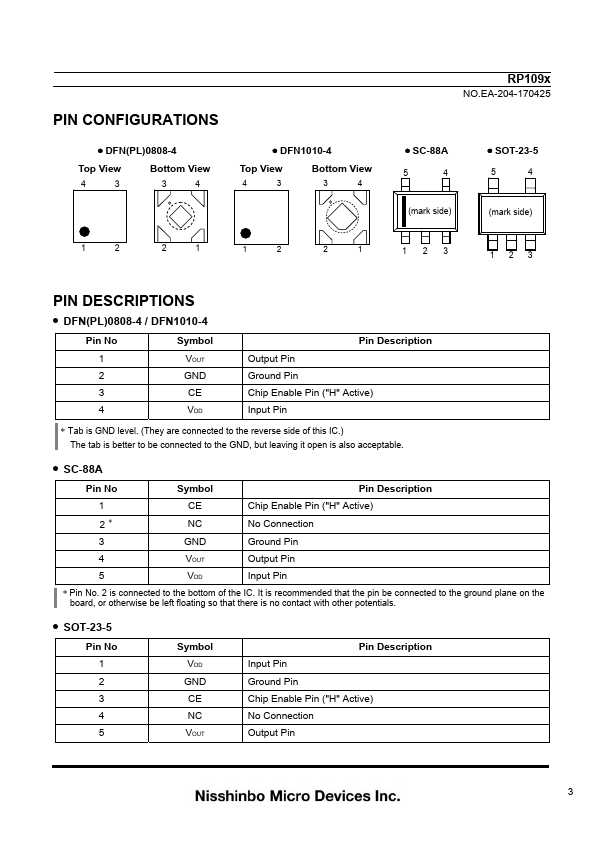

DFN(PL)0808-4 / DFN1010-4
Pin No 1 2
Symbol VOUT GND
Output Pin Ground Pin
Pin Description
3
CE
Chip Enable Pin ("H" Active)
4
VDD
Input Pin
Tab is GND level.(They are connected to the reverse side of this IC.)
The tab is better to be connected to the GND, but leaving it open is also acceptable.
SC-88A
Pin No 1
Symbol CE
Pin Description Chip Enable Pin ("H" Active)
2
NC
No Connection
3
GND
Ground Pin
4
VOUT
Output Pin
5
VDD
Input Pin
Pin No.

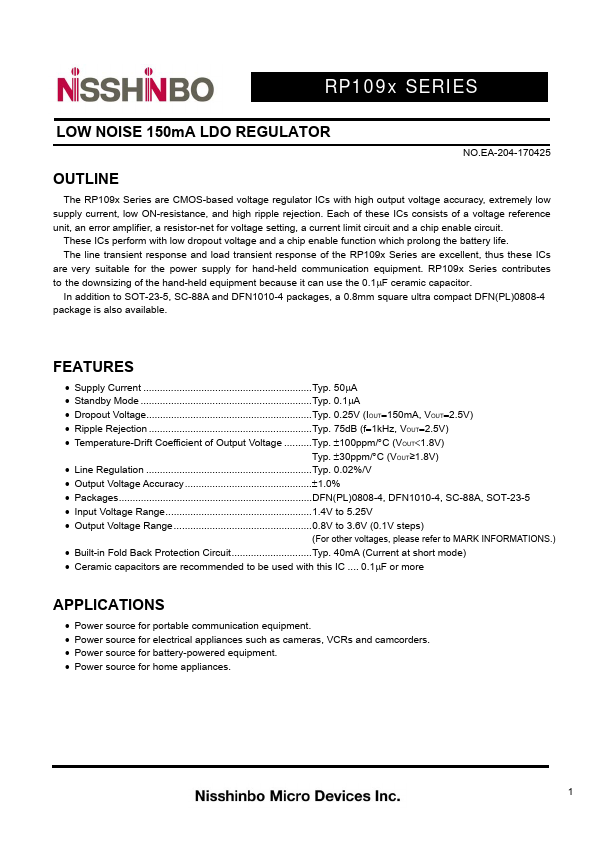

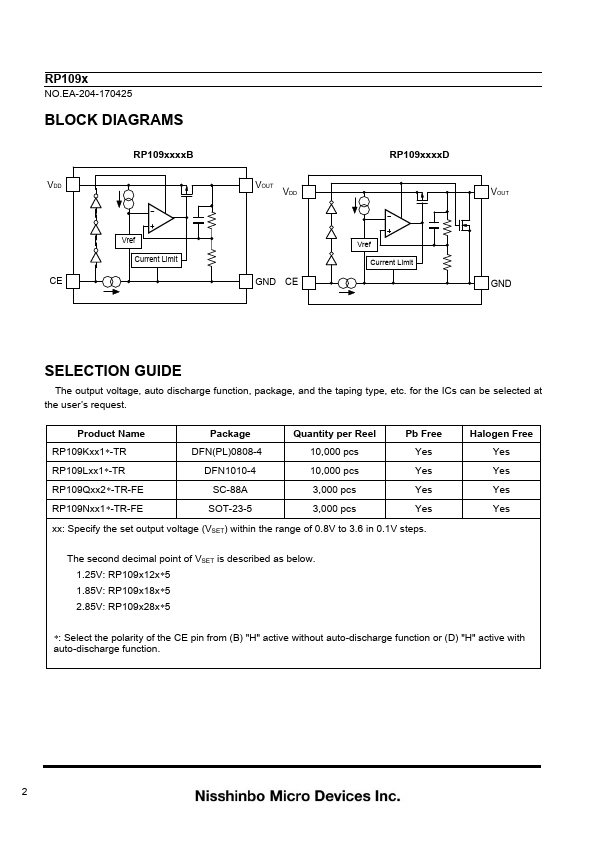

Features
- Supply Current Typ. 50A.
- Standby Mode Typ. 0.1A.
- Dropout VoltageTyp. 0.25V (IOUT150mA, VOUT2.5V).
- Ripple Rejection Typ. 75dB (f1kHz, VOUT2.5V).
- Temperature-Drift Coefficient of Output Voltage Typ. 100ppm/C (VOUT1.8V)
Typ. 30ppm/C (VOUT≥1.8V).
- Line Regulation Typ. 0.02%/V.
- Output Voltage Accuracy1.0%.
- PackagesDFN(PL)0808-4, DFN1010-4, SC-88A, SOT-23-5.
- Input Voltage Range1.4V to 5.25V.
- Output Voltage Range0.8V to 3.6V (0.1V steps)
(Fo.
