RP110L, RP110K 150mA Low Supply Current LDO REGULATOR

Nisshinbo

Description

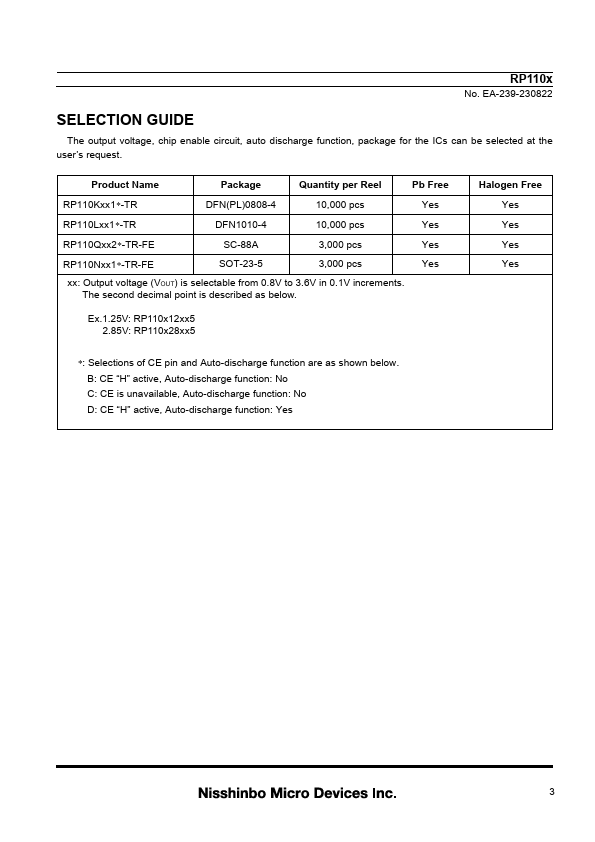

RP110x SERIES 150mA Low Supply Current LDO REGULATOR No.EA-239-230822 OUTLINE The RP110x Series is a voltage regulator (LDO) IC, which has been de.
DFN(PL)0808-4 Pin No 1 2 3 4 Symbol VOUT GND CE / NC VDD Pin Description Output Pin Ground Pin Chip Enable Pin ("H" Active) / No connect.

📥 Download Datasheet

RP110L Datasheet Preview — This datasheet PDF includes multiple part numbers: RP110L, RP110K. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RP110L, RP110K
Manufacturer: Nisshinbo
File Size: 1.23 MB
Datasheet: RP110K-Nisshinbo.pdf
Description: 150mA Low Supply Current LDO REGULATOR
Note: This datasheet PDF includes multiple part numbers: RP110L, RP110K.
Please refer to the document for exact specifications by model.

Features

* Supply Current Typ. 1.0µA (Except the current through CE pull down circuit)
* Standby Current Typ. 0.1µA
* Dropout Voltage Typ. 0.28V (IOUT=150mA, VOUT=2.8V)
* Output Voltage Accuracy±1.0%
* Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C

Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.

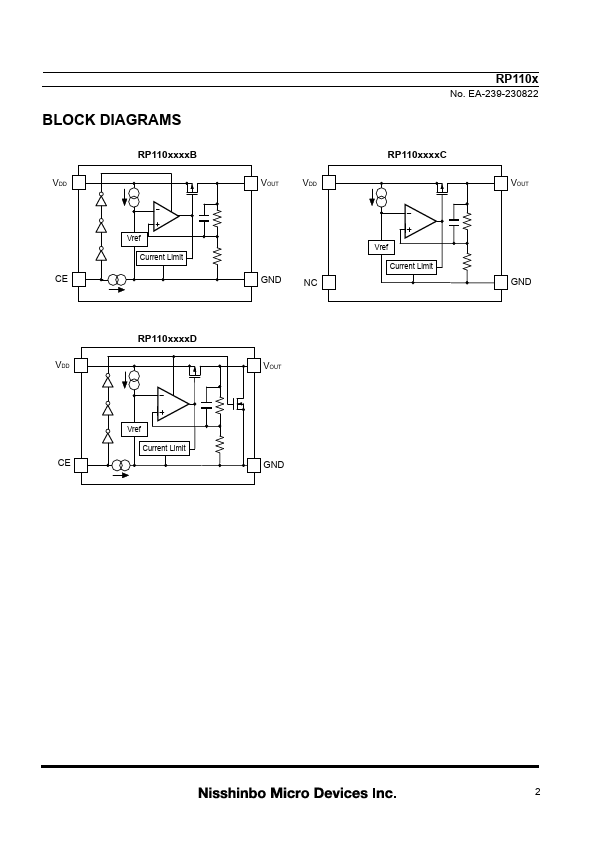

* Power source for battery-powered equipment. 1 BLOCK DIAGRAMS RP110xxxxB VDD Vref Current Limit CE RP110xxxxD VDD Vref Current Limit CE VOUT
