RP111L - Good Transient Response Low Voltage 500mA LDO

RP111L Description

RP111x Series Good Transient Response Low Voltage 500mA LDO NO.EA-241-190523 OUTLINE The RP111x Series are CMOS-based LDO regulators featuring 500m.
DFN1212-6 Pin No.

RP111L Features

* an excellent line transient response, ripple rejection at 75dB, and low noise. The output voltage accuracy is as high as ±0.8% and the temperature drift coefficient of output voltage is low at ±30ppm/°C. The accuracy of the output voltage of RP111x includes the temperature characteristics and the lo

RP111L Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipments.
* Power source for electrical home appliances. 1 RP111x NO. EA-241-190523 BLOCK DIAGRAMS

📥 Download Datasheet

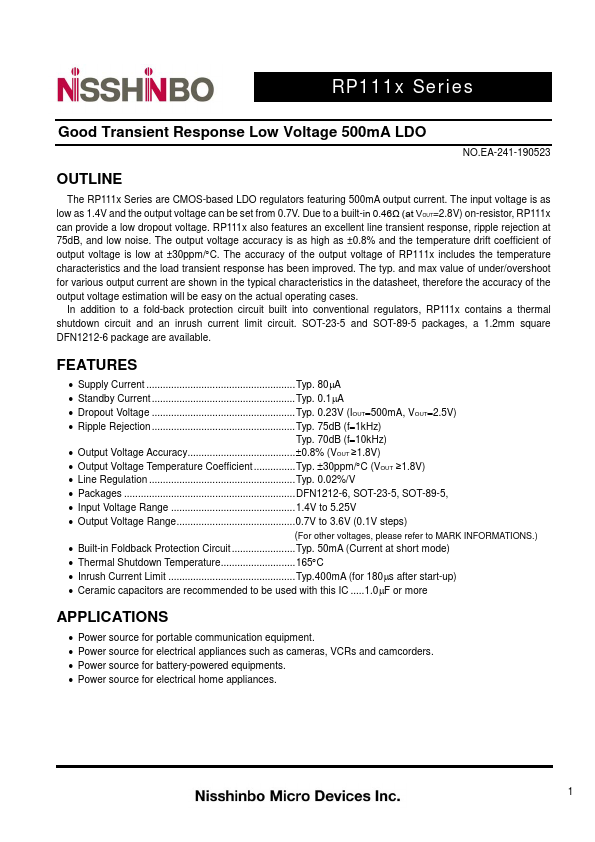

Preview of RP111L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP111L
Manufacturer
Nisshinbo
File Size
1.99 MB
Datasheet
RP111L-Nisshinbo.pdf
Description
Good Transient Response Low Voltage 500mA LDO
