RP111N, RP111L Good Transient Response Low Voltage 500mA LDO

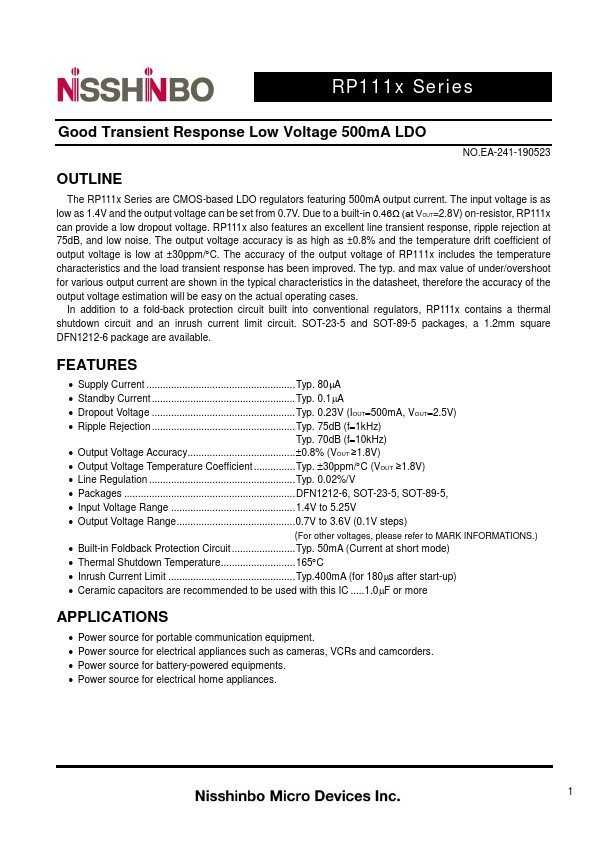

RP111x Series Good Transient Response Low Voltage 500mA LDO NO.EA-241-190523 OUTLINE The RP111x Series are CMOS-based LDO regulators featuring 500m.

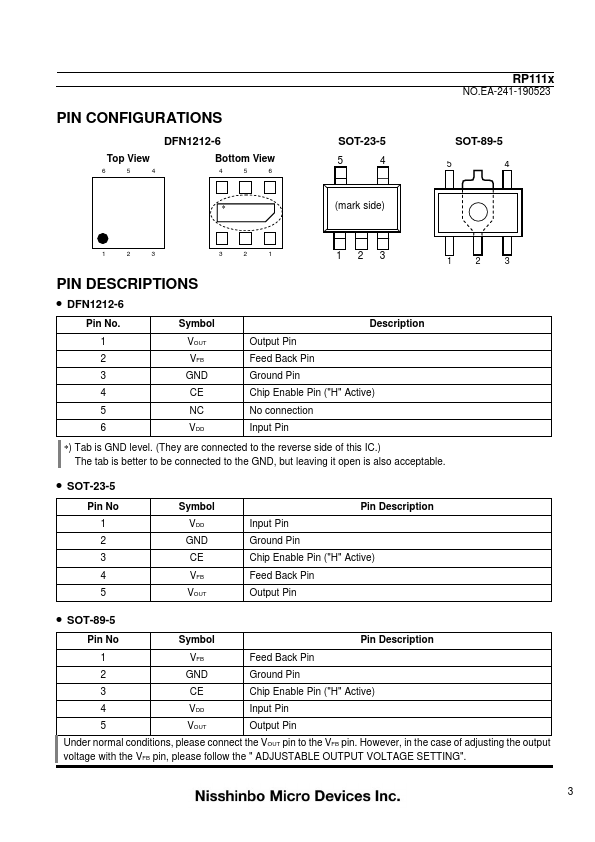

DFN1212-6 Pin No.

RP111L-Nisshinbo.pdf

RP111N Datasheet Preview — This datasheet PDF includes multiple part numbers: RP111N, RP111L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RP111N, RP111L

Manufacturer:

Nisshinbo

File Size:

1.99 MB

Description:

Good Transient Response Low Voltage 500mA LDO

Note:

This datasheet PDF includes multiple part numbers: RP111N, RP111L.
Please refer to the document for exact specifications by model.

Features

* an excellent line transient response, ripple rejection at 75dB, and low noise. The output voltage accuracy is as high as ±0.8% and the temperature drift coefficient of output voltage is low at ±30ppm/°C. The accuracy of the output voltage of RP111x includes the temperature characteristics and the lo

Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipments.

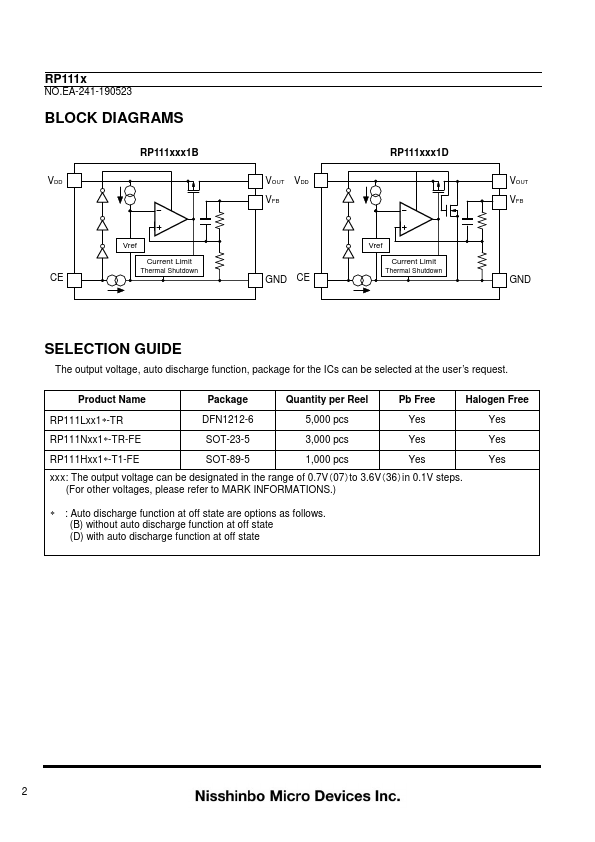

* Power source for electrical home appliances. 1 RP111x NO. EA-241-190523 BLOCK DIAGRAMS
