| Part number | RP122N, RP122Z |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 3.88 MB |
| Description | 400mA Low Noise and Low Supply Current LDO Regulator |
| Datasheet |
 RP122Z-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP122N, RP122Z. Please refer to the document for exact specifications by model. |

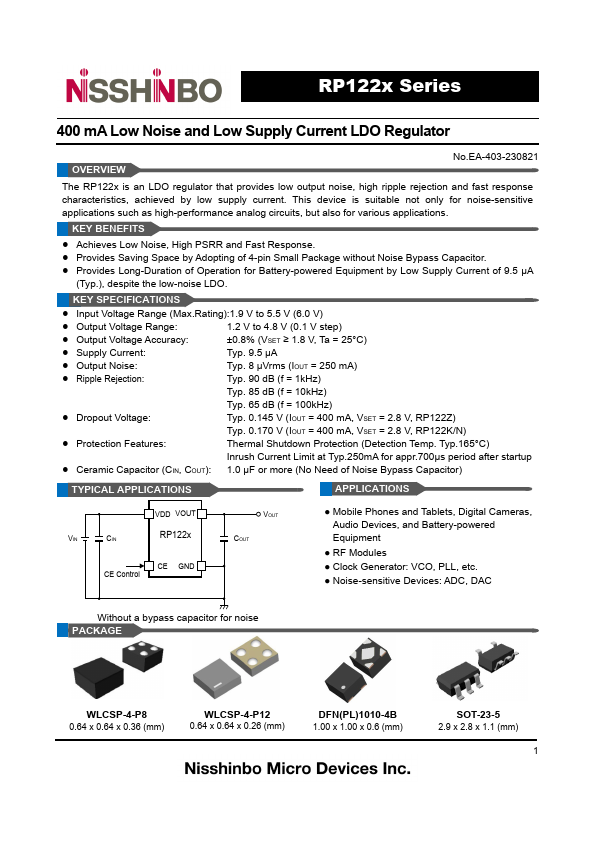

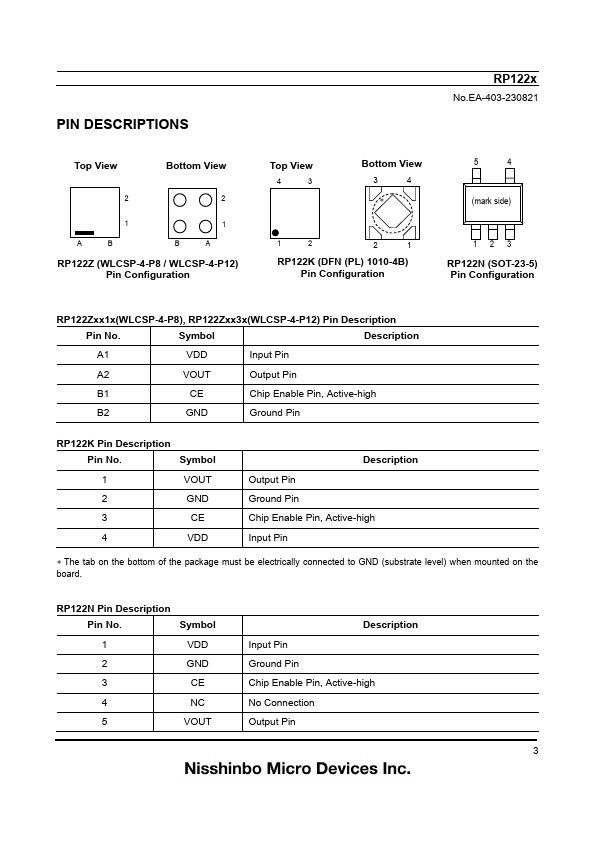

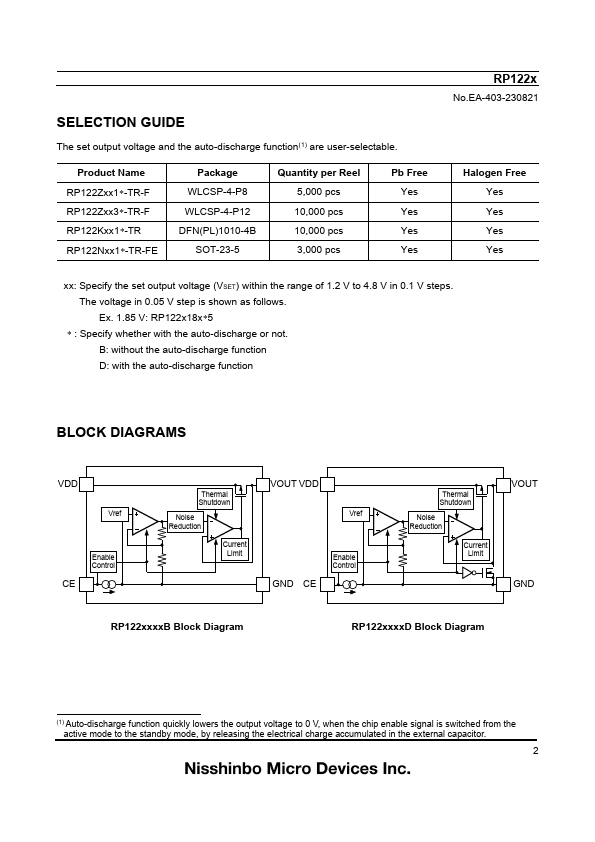

Top View Bottom View 2 2 1 1 A B B A RP122Z (WLCSP-4-P8 / WLCSP-4-P12) Pin Configuration RP122x No.EA-403-230821 Top View 4 3 Bottom View 3 4 ∗ 5 4 (mark side) 1 2 2 1 RP122K (DFN (PL) 1010-4B) Pin Configuration 123 RP122N (SOT-23-5) Pin Configuration RP122Zxx1x(WLCSP-4-P8), RP122Zxx3x(WLCSP-4-P12) Pin Description Pin No.Symbol Description A1 VDD Input Pin A2 VOUT Output Pin B1 CE Chip Enable Pin, Active-high B2 GND Ground Pin RP122K Pin Description
