| Part number | RP124N, RP124L |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 3.07 MB |
| Description | 100mA Ultra-low Supply Current LDO Regulator |
| Datasheet |
 RP124L-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP124N, RP124L. Please refer to the document for exact specifications by model. |

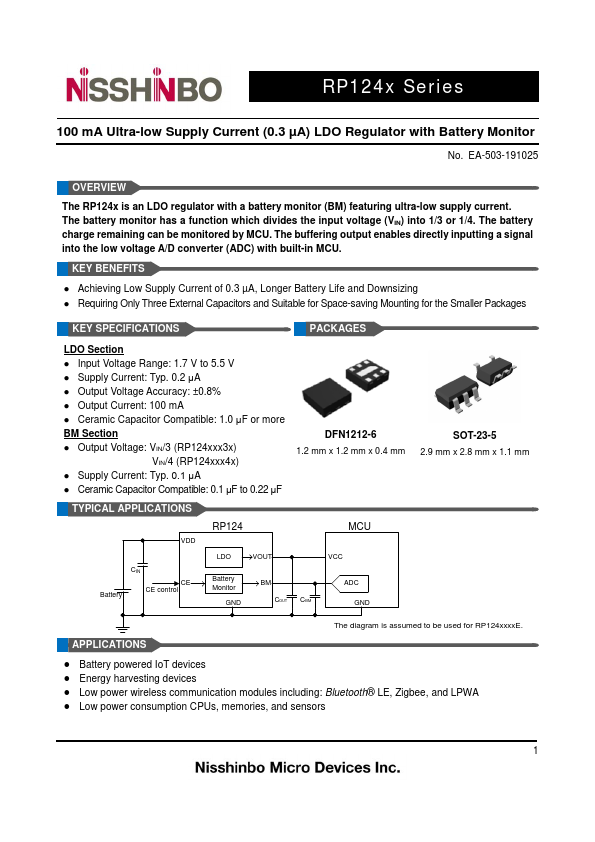

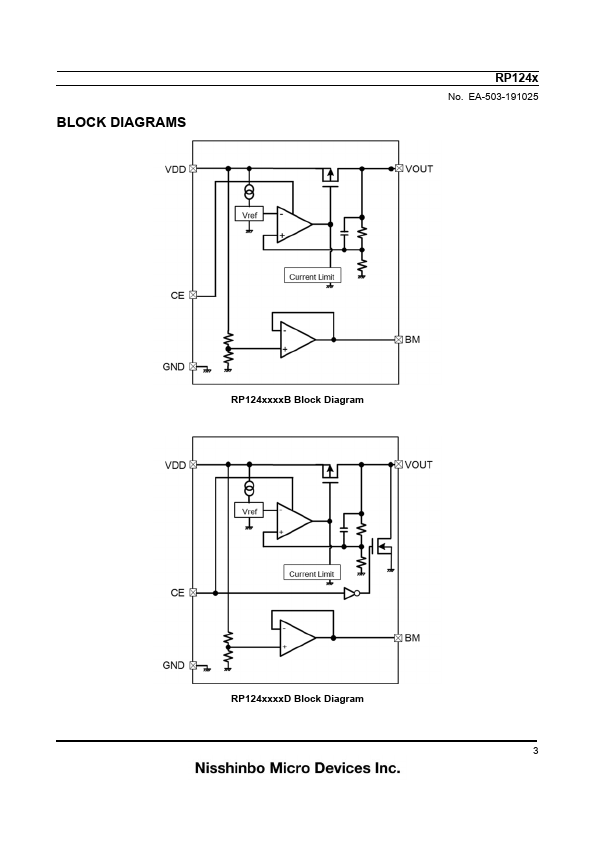

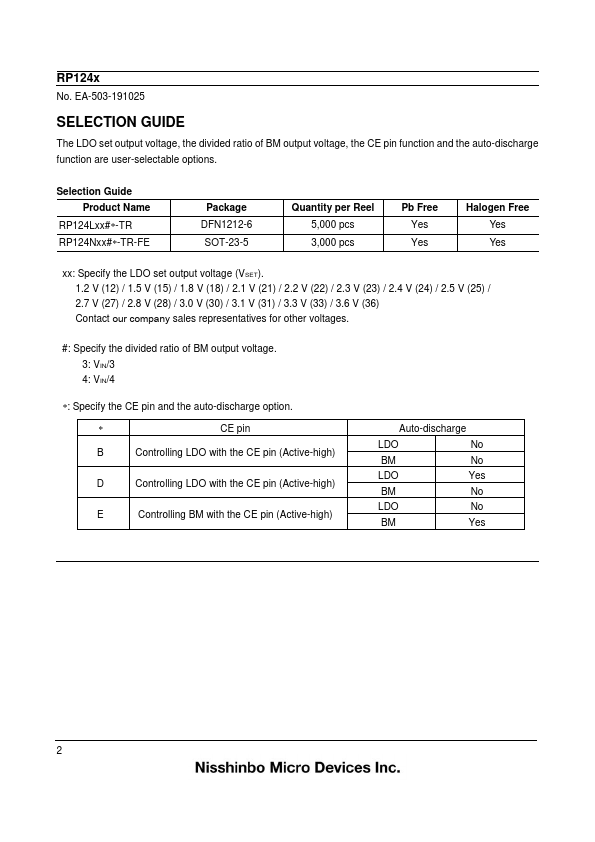

Top View 6 5 4 Bottom View 4 5 6 (1) RP124x No.EA-503-191025 5 4 (mark side) 1 2 3 3 2 1 1 RP124L (DFN1212-6) Pin Configuration 12 3 RP124N (SOT-23-5) Pin Configuration RP124L (DFN1212-6) Pin Description Pin No.Symbol 1 VOUT 2 GND 3 BM 4 CE 5 NC 6 VDD Description Output Pin Ground Pin Battery Monitoring Output Pin Chip Enable Pin, Active-high No Connection Input Pin RP124N (SOT-23-5) Pin Description Pin No.Symbol 1 VDD 2 GND 3 CE 4 BM 5 VOU
