RP130Q, RP130K - Low Noise 150mA LDO Regulator

Nisshinbo

RP130Q Datasheet Preview — This datasheet PDF includes multiple part numbers: RP130Q, RP130K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RP130Q, RP130K
Manufacturer	Nisshinbo
File Size	1.11 MB
Description	Low Noise 150mA LDO Regulator
Datasheet	RP130K-Nisshinbo.pdf
Note	This datasheet PDF includes multiple part numbers: RP130Q, RP130K. Please refer to the document for exact specifications by model.

RP130Q Product details

Description

Top View Bottom View 4 3 3 4 (1) 4 3 (mark side) RP130x No.EA-173-230725 5 4 (mark side) 1 2 2 11 1 2 DFN(PL)1010-4 Pin Configuration SC-82AB Pin Configuration 123 SOT-23-5 Pin Configuration DFN(PL)1010-4 Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE / CE 4 VDD SC-82AB Pin Description Pin No Symbol 1 CE / CE 2 GND 3 VOUT 4 VDD SOT-23-5 Pin Description Pin No Symbol 1 VDD 2 GND 3 CE / CE 4 NC 5 VOUT Output Pin Ground Pin Pin Descripti

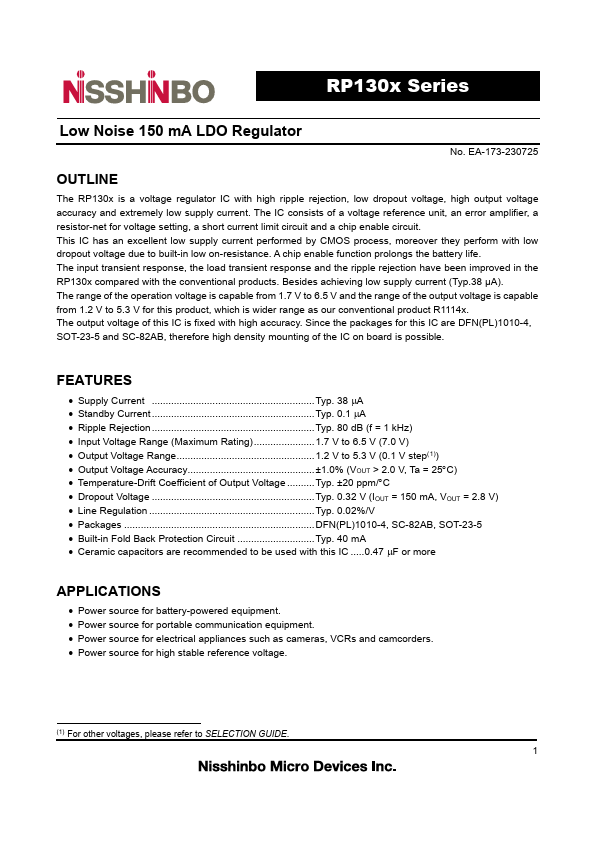

Features

Supply Current Typ. 38 µA.
Standby Current Typ. 0.1 µA.
Ripple Rejection Typ. 80 dB (f = 1 kHz).
Input Voltage Range (Maximum Rating) 1.7 V to 6.5 V (7.0 V).
Output Voltage Range 1.2 V to 5.3 V (0.1 V step(1)).
Output Voltage Accuracy ±1.0% (VOUT > 2.0 V, Ta = 25°C).
Temperature-Drift Coefficient of Output Voltage Typ. ±20 ppm/°C.
Dropout Voltage Typ. 0.32 V (IOUT = 150 mA, VOUT = 2.8 V).
Line Regulation Typ.
