RP132J-Y - Low on Resistance / Low Voltage 1A LDO

Product Overview

Nisshinbo

📥 Download Datasheet

RP132J-Y Low on Resistance / Low Voltage 1A LDO by Nisshinbo - Datasheet Preview — Datasheet preview – RP132J-Y

Datasheet Details

Part number	RP132J-Y
Manufacturer	Nisshinbo
File Size	1.32 MB
Description	Low on Resistance / Low Voltage 1A LDO
Datasheet	RP132J-Y Datasheet
Note	This datasheet PDF includes multiple part numbers: RP132J-Y, RP132K-Y. Please refer to the document for exact specifications by model.

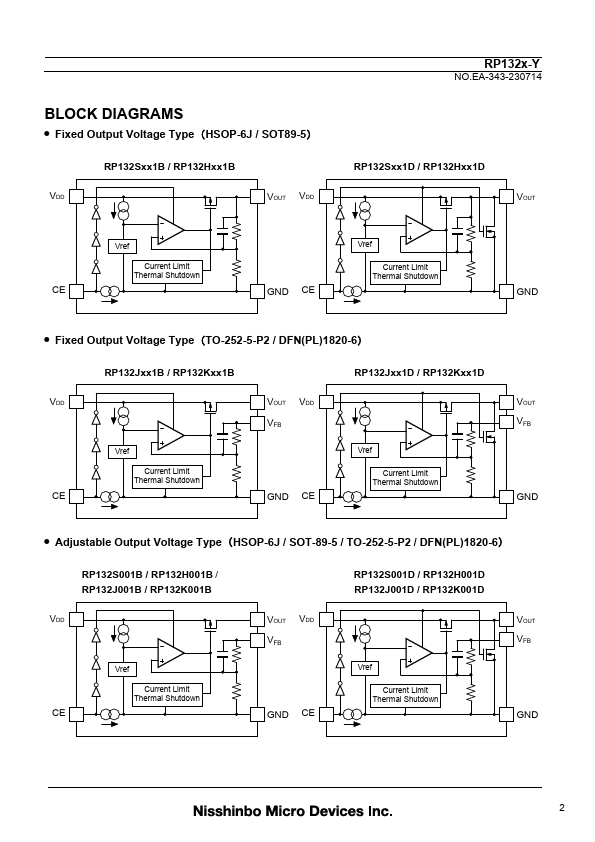

Additional preview pages of the RP132J-Y datasheet.

Product details

Features

Input Voltage Range (Maximum Rating) 1.4V to 6.5V (7 V).
Operating Temperature Range.
40°C to 105°C (※).
Output Current Min. 1A.
Supply Current Typ. 65µA.
Standby Current Typ. 0.15µA.
Output Voltage Range Fixed Output Voltage Type: 0.8V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V, 4.0V, 5.0V Contact our sales representatives for other voltages. Adjustable Output Voltage Type: 0.8V to 5.5V.
Dropout Voltage Typ. 0.52V (VS.
