RP132K-Y Low on Resistance / Low Voltage 1A LDO

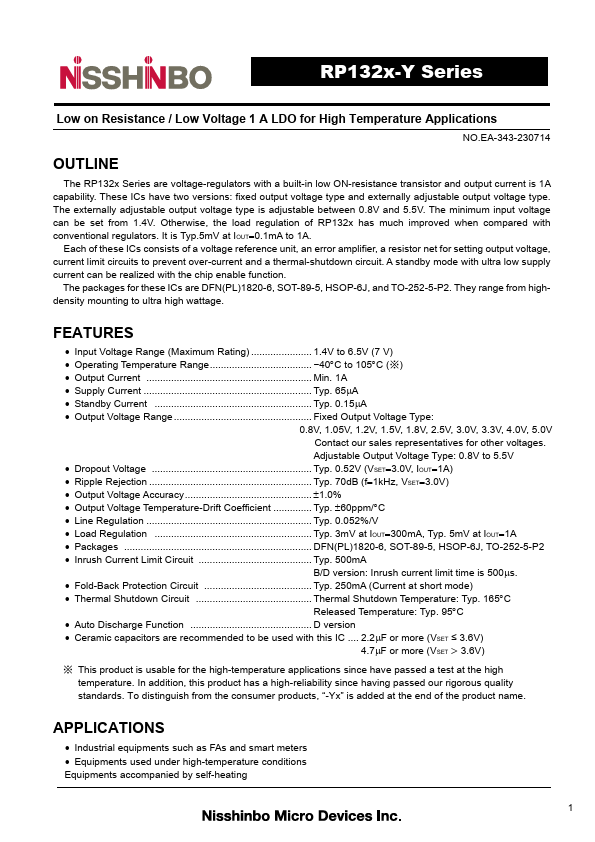

📥 Download Datasheet  Datasheet Preview Page 1

Description

RP132x-Y Series Low on Resistance / Low Voltage 1 A LDO for High Temperature Applications NO.EA-343-230714 OUTLINE The RP132x Series are voltage-regul.

📥 Download Datasheet

Preview of RP132K-Y PDF

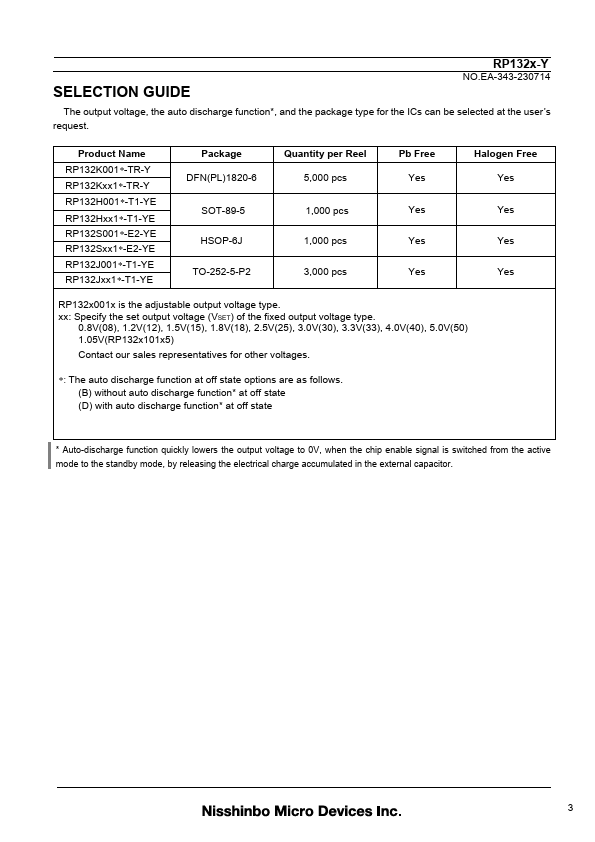

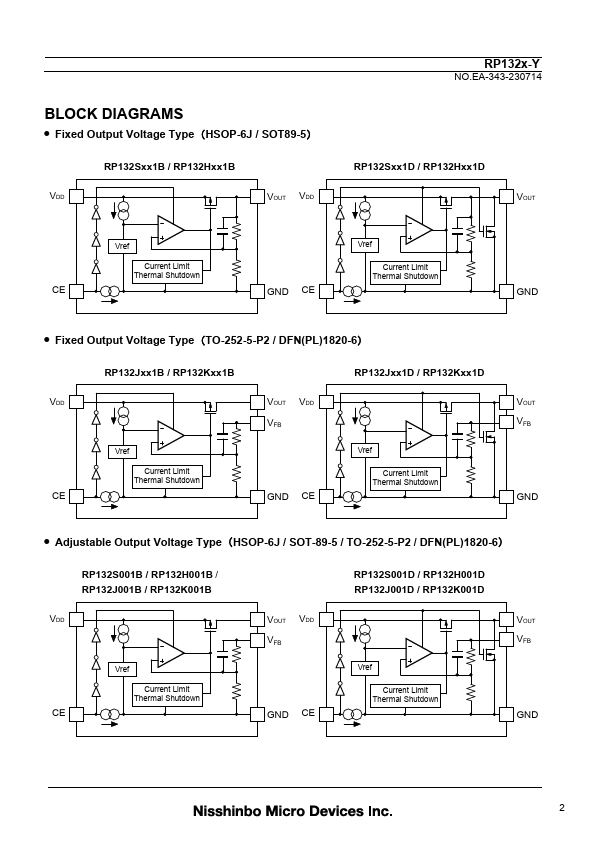

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RP132K-Y
Manufacturer
Nisshinbo
File Size
1.32 MB
Datasheet
RP132K-Y-Nisshinbo.pdf
Description
Low on Resistance / Low Voltage 1A LDO

Features

* Input Voltage Range (Maximum Rating) 1.4V to 6.5V (7 V)
* Operating Temperature Range
* 40°C to 105°C (※)
* Output Current Min. 1A
* Supply Current Typ. 65µA
* Standby Current Typ. 0.15µA
* Output Voltage Range Fixed Output Voltage Type:

Applications

* NO. EA-343-230714 OUTLINE The RP132x Series are voltage-regulators with a built-in low ON-resistance transistor and output current is 1A capability. These ICs have two versions: fixed output voltage type and externally adjustable output voltage type. The externally adjustable output voltage type is a
