RP132S-Y, RP132K-Y - Low on Resistance / Low Voltage 1A LDO

RP132S-Y Description

RP132x-Y Series Low on Resistance / Low Voltage 1 A LDO for High Temperature Applications NO.EA-343-230714 OUTLINE The RP132x Series are voltage-regul.

RP132S-Y Features

* Input Voltage Range (Maximum Rating) 1.4V to 6.5V (7 V)
* Operating Temperature Range
* 40°C to 105°C (※)
* Output Current Min. 1A
* Supply Current Typ. 65µA
* Standby Current Typ. 0.15µA
* Output Voltage Range Fixed Output Voltage Type:

RP132S-Y Applications

* NO. EA-343-230714 OUTLINE The RP132x Series are voltage-regulators with a built-in low ON-resistance transistor and output current is 1A capability. These ICs have two versions: fixed output voltage type and externally adjustable output voltage type. The externally adjustable output voltage type is a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP132S-Y, RP132K-Y. Please refer to the document for exact specifications by model.

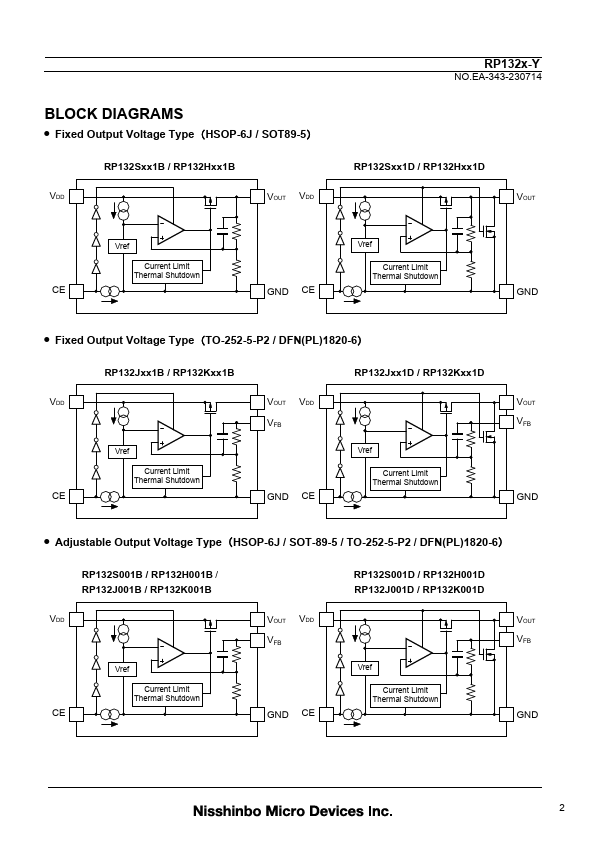

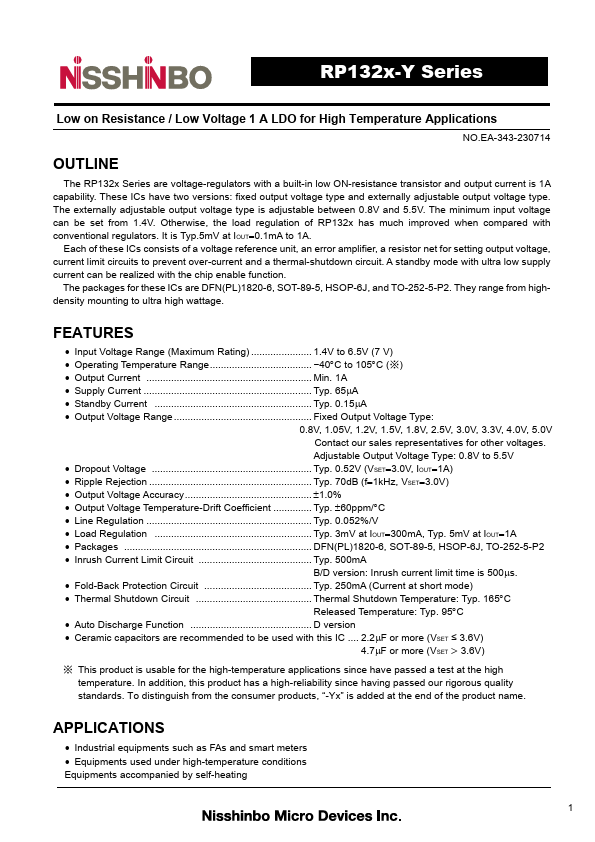

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP132S-Y, RP132K-Y
Manufacturer
Nisshinbo
File Size
1.32 MB
Datasheet
RP132K-Y-Nisshinbo.pdf
Description
Low on Resistance / Low Voltage 1A LDO
Note
This datasheet PDF includes multiple part numbers: RP132S-Y, RP132K-Y.
Please refer to the document for exact specifications by model.
