RP150K LOW NOISE Dual 300mA LDO

Nisshinbo

Description

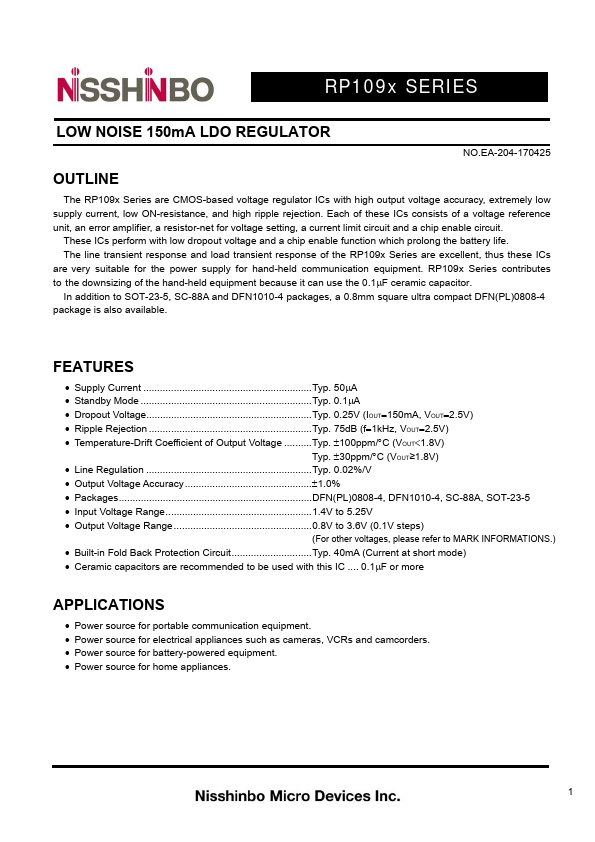

RP109x SERIES LOW NOISE 150mA LDO REGULATOR NO.EA-204-170425 OUTLINE The RP109x Series are CMOS-based voltage regulator ICs with high output voltag.

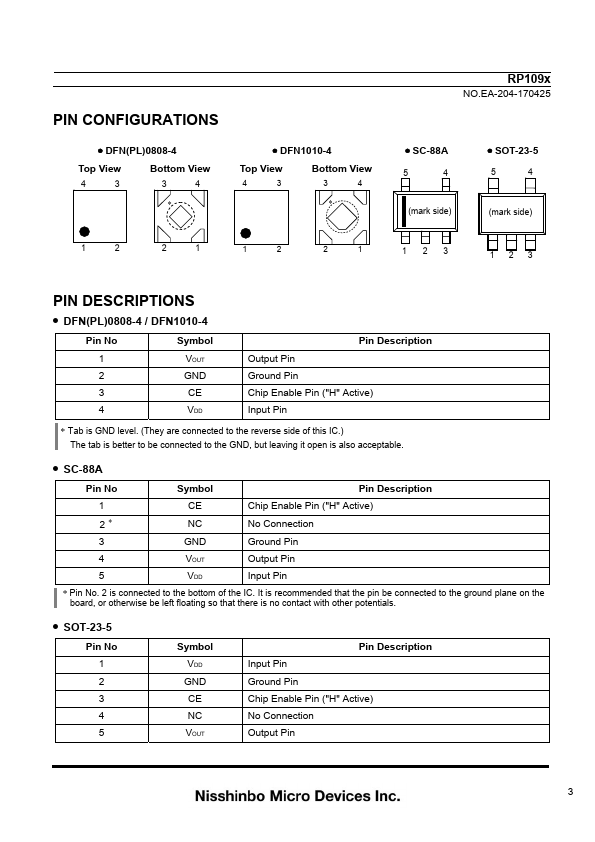

DFN(PL)0808-4 / DFN1010-4 Pin No 1 2 Symbol VOUT GND Output Pin Ground Pin Pin Description 3 CE Chip Enable Pin ("H" Active) 4 VD.

📥 Download Datasheet

RP150K Datasheet Preview — Preview of RP150K PDF

Datasheet Specifications

Part number: RP150K
Manufacturer: Nisshinbo
File Size: 0.96 MB
Datasheet: RP150K-Nisshinbo.pdf
Description: LOW NOISE Dual 300mA LDO

Features

* Supply Current Typ. 50A
* Standby Mode Typ. 0.1A
* Dropout VoltageTyp. 0.25V (IOUT150mA, VOUT2.5V)
* Ripple Rejection Typ. 75dB (f1kHz, VOUT2.5V)
* Temperature-Drift Coefficient of Output Voltage Typ. 100ppm/C (VOUT1.8V) Typ. 30ppm/C (VOUT≥1.8V)
* Line Regulation

Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipment.

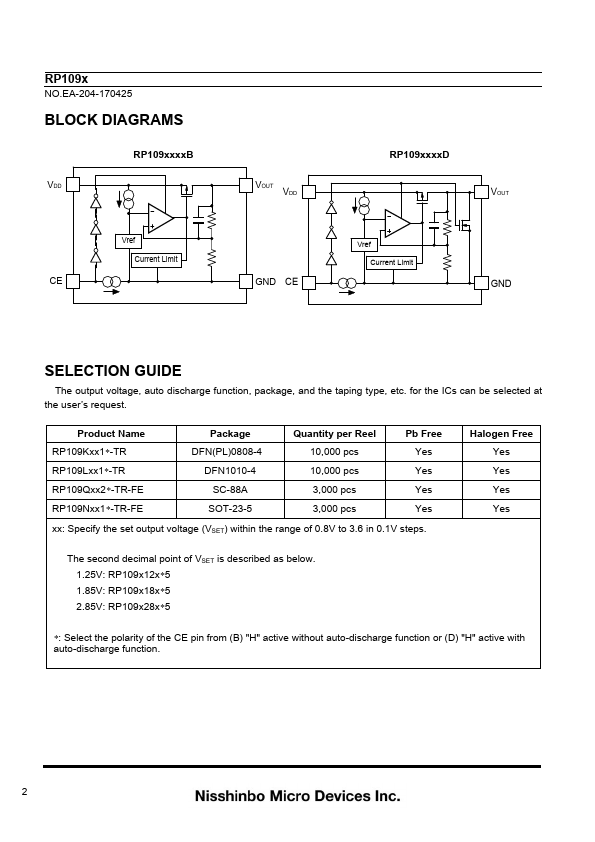

* Power source for home appliances. 1 RP109x NO. EA-204-170425 BLOCK DIAGRAMS RP109xxxxB VDD Vref Current
