RP152N, RP152L - 150mA Low Voltage Dual-Channel LDO Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP152N, RP152L. Please refer to the document for exact specifications by model.

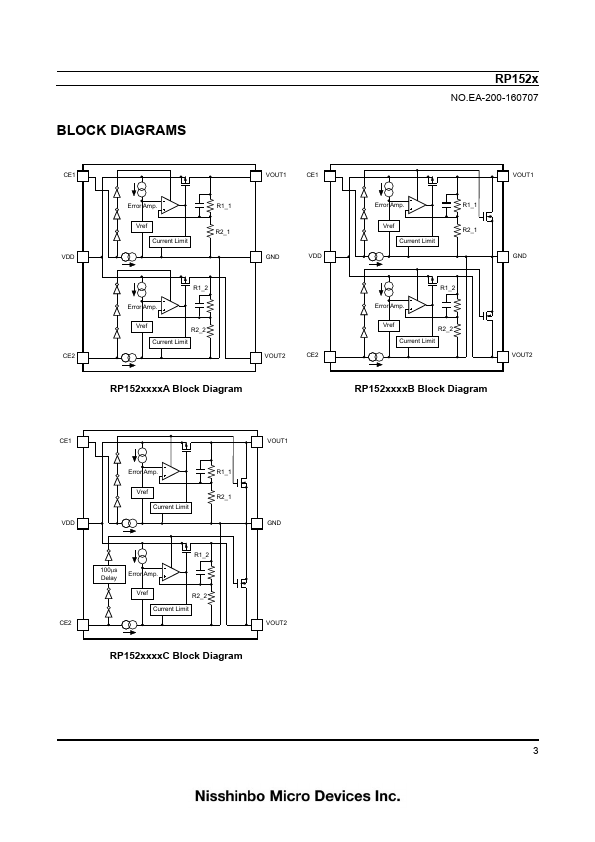

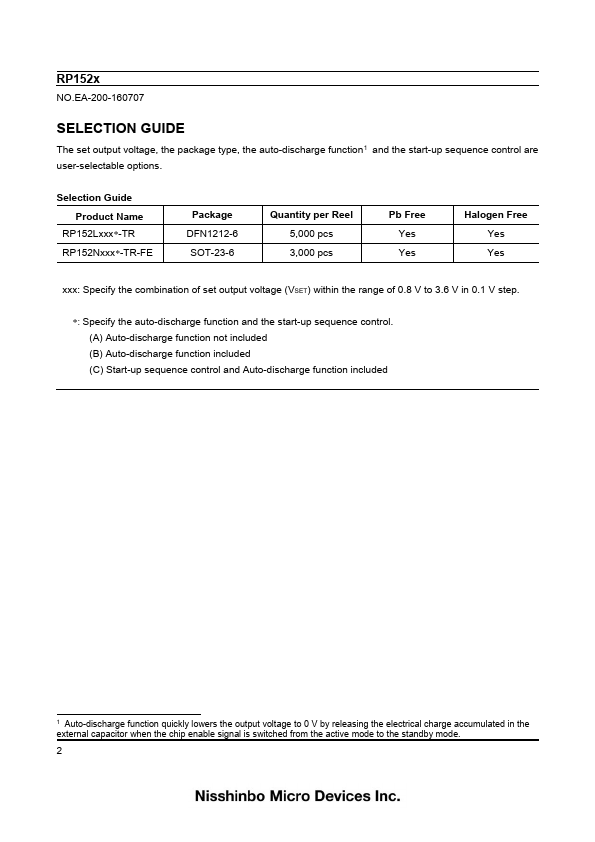

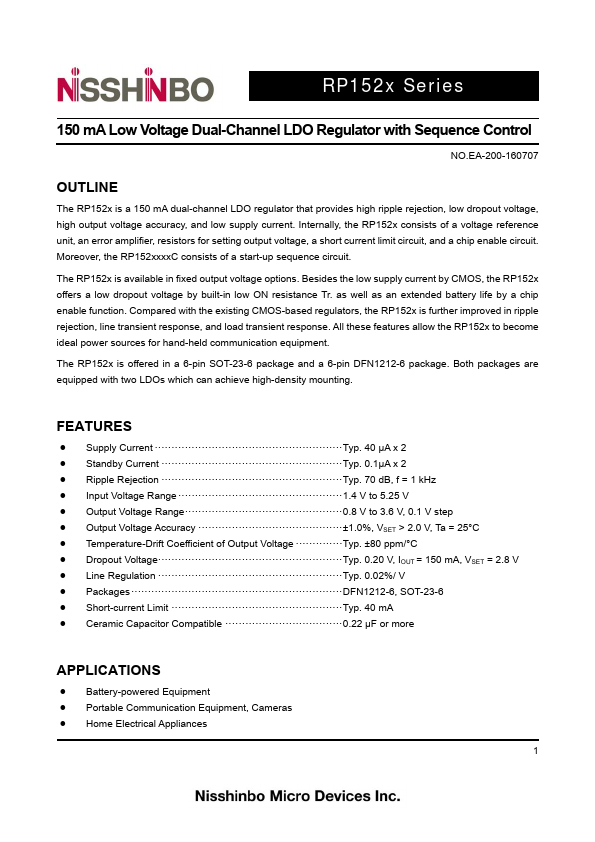

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RP152N, RP152L
Manufacturer Nisshinbo
File Size 2.62 MB
Description 150mA Low Voltage Dual-Channel LDO Regulator
Datasheet download datasheet RP152L-Nisshinbo.pdf
Note This datasheet PDF includes multiple part numbers: RP152N, RP152L.
Please refer to the document for exact specifications by model.

RP152N Product details

Description

Top View 6 5 4 Bottom View 4 5 6 ∗ 6 5 4 (mark side) 1 2 3 3 2 1 DFN1212-6 Pin Configuration 1 2 3 SOT-23-6 Pin Configuration DFN1212-6 Pin Description Pin No.Symbol Description 1 VOUT1 Output Pin 1 2 VOUT2 Output Pin2 3 GND Ground Pin 4 CE2 Chip Enable Pin 2, Active-high 5 VDD Input Pin 6 CE1 Chip Enable Pin 1, Active-high ∗ The tab on the bottom of the package enhances thermal performance and is electrically connected to GND (substrate level).I
