RP154N, RP154L - 300mA Small Dual LDO Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP154N, RP154L. Please refer to the document for exact specifications by model.

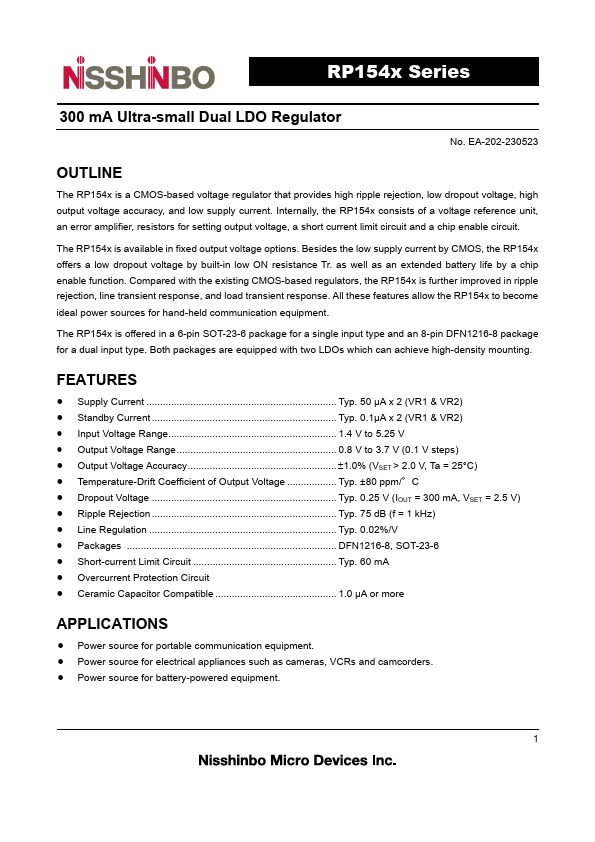

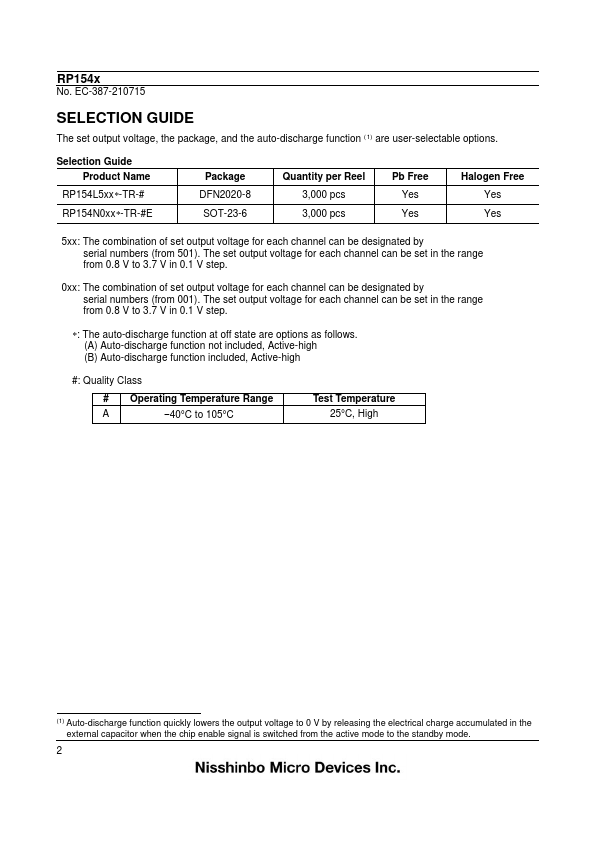

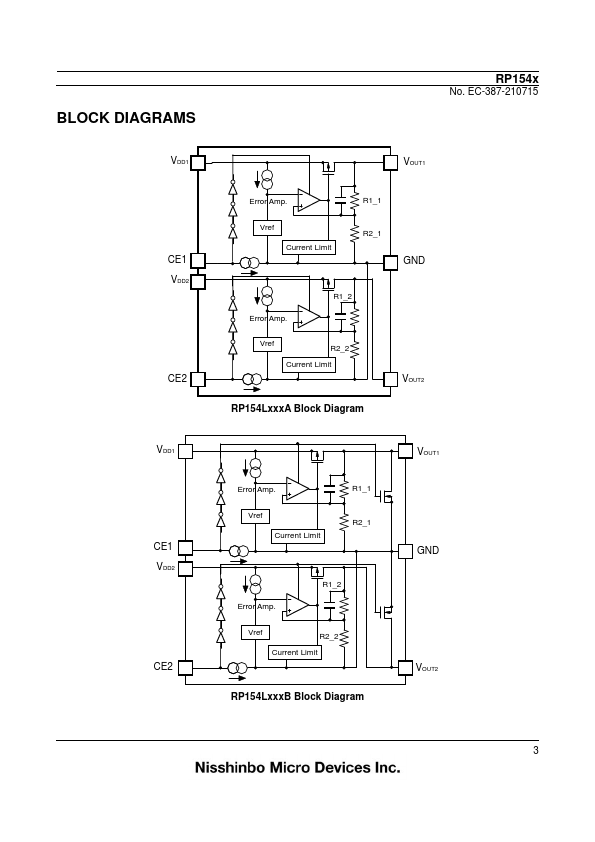

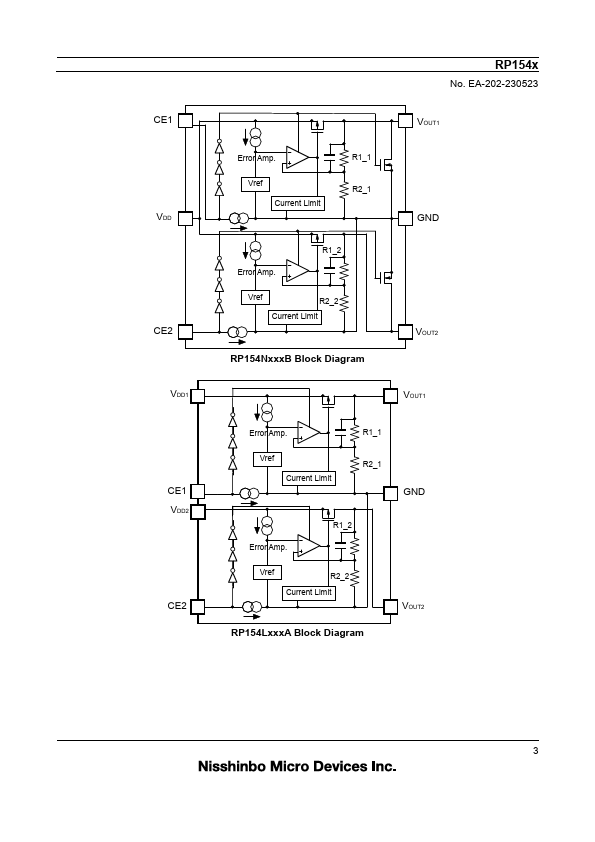

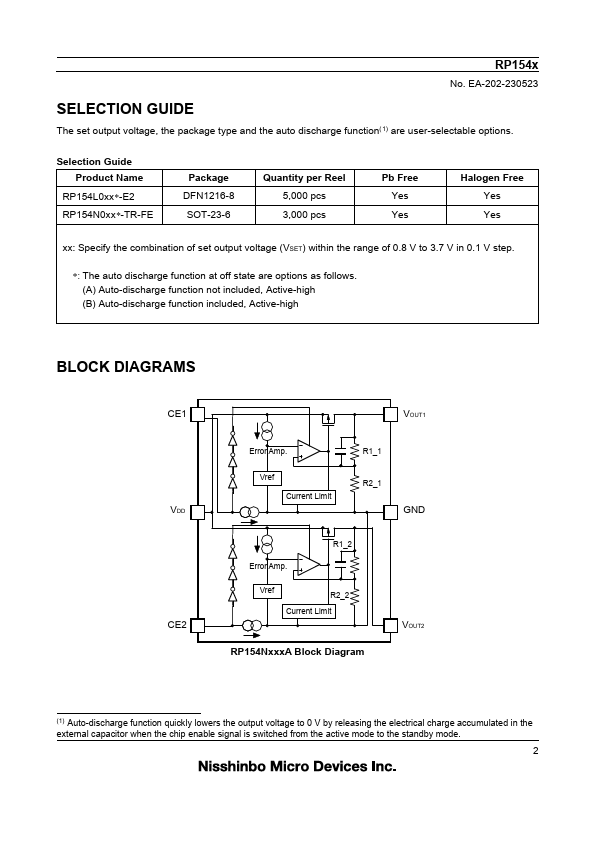

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RP154N, RP154L
Manufacturer Nisshinbo
File Size 1.69 MB
Description 300mA Small Dual LDO Regulator
Datasheet download datasheet RP154L-Nisshinbo.pdf
Note This datasheet PDF includes multiple part numbers: RP154N, RP154L.
Please refer to the document for exact specifications by model.

RP154N Product details

Description

Top View 87 65 Bottom View 5 6 78 (1) RP154x No.EA-202-230523 6 5 4 (mark side) 1234 4 32 11 DFN1216-8 Pin Configuration 1 2 3 SOT-23-6 Pin Configuration DFN1216-8 Pin Description Pin No.Symbol 1 GND 2 VOUT1 3 VOUT2 4 GND 5 CE2 6 VDD2 7 VDD1 8 CE1 Description Ground Pin(2) Output Pin 1 Output Pin 2 Ground Pin(2) Chip Enable Pin 2, Active-high Input Pin Input Pin Chip Enable Pin 1, Active-high SOT-23-6 Pin Description Pin No.Symbol 1 CE1 2 VDD 3 CE

Features
