Description

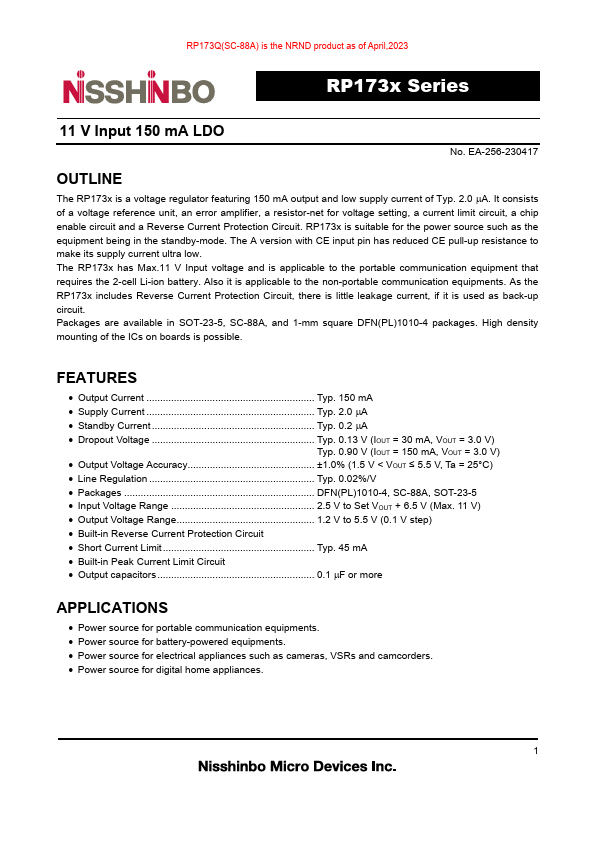

RP173Q(SC-88A) is the NRND product as of April,2023 RP173x Series 11 V Input 150 mA LDO No.EA-256-230417 OUTLINE The RP173x is a voltage regulator.
Top View
4
3
Bottom View
3
4
(1)
5
4
(mark side)
RP173x
No.
Features
* Output Current Typ. 150 mA
* Supply Current Typ. 2.0 µA
* Standby Current Typ. 0.2 µA
* Dropout Voltage Typ. 0.13 V (IOUT = 30 mA, VOUT = 3.0 V)
Typ. 0.90 V (IOUT = 150 mA, VOUT = 3.0 V)
* Output Voltage Accuracy ±1.0% (1.5 V < VOUT ≤ 5.5 V, Ta = 25°C)
Applications
* Power source for portable communication equipments.
* Power source for battery-powered equipments.
* Power source for electrical appliances such as cameras, VSRs and camcorders.
* Power source for digital home appliances. 1
RP173Q(SC-88A) is the NRND product as of
