RP173N241A-TR-FE, RP173N181D-TR-FE - 11V Input 150mA LDO

Nisshinbo

RP173N241A-TR-FE Datasheet Preview — This datasheet PDF includes multiple part numbers: RP173N241A-TR-FE, RP173N181D-TR-FE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RP173N241A-TR-FE, RP173N181D-TR-FE
Manufacturer	Nisshinbo
File Size	1.55 MB
Description	11V Input 150mA LDO
Datasheet	RP173N181D-TR-FE-Nisshinbo.pdf
Note	This datasheet PDF includes multiple part numbers: RP173N241A-TR-FE, RP173N181D-TR-FE. Please refer to the document for exact specifications by model.

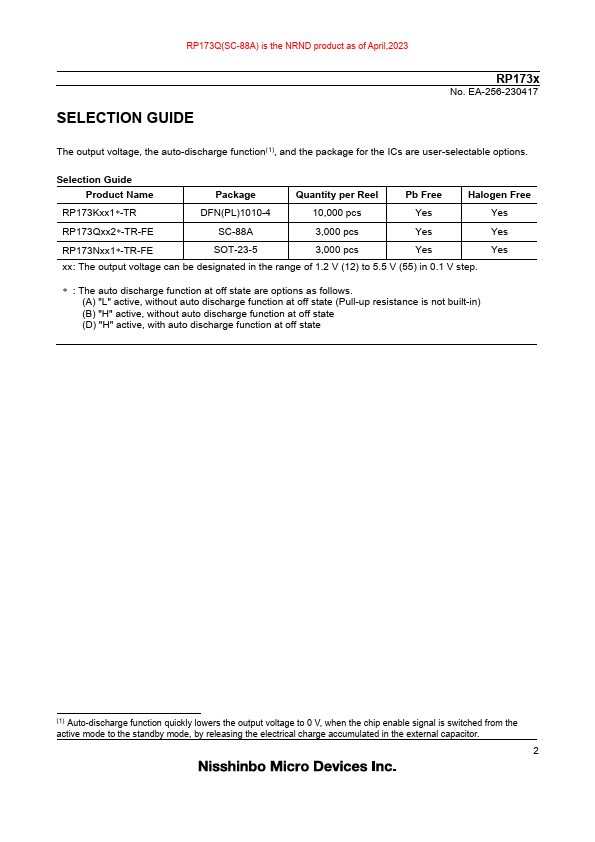

RP173N241A-TR-FE Product details

Description

Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) RP173x No.EA-256-230417 5 4 (mark side) 1 2 2 11 RP173K [DFN(PL)1010-4] Pin Configuration 123 RP173Q (SC-88A) Pin Configuration 123 RP173N (SOT-23-5) Pin Configuration RP173K Pin Descriptions Pin No.Symbol 1 VOUT 2 GND 3 CE /CE 4 VDD Output Pin Ground Pin Chip Enable Pin Input Pin Description RP173Q Pin Descriptions Pin No.Symbol 1 CE /CE 2( 2) NC 3 GND 4 VOUT 5 VDD Chip Enable Pin No Connection

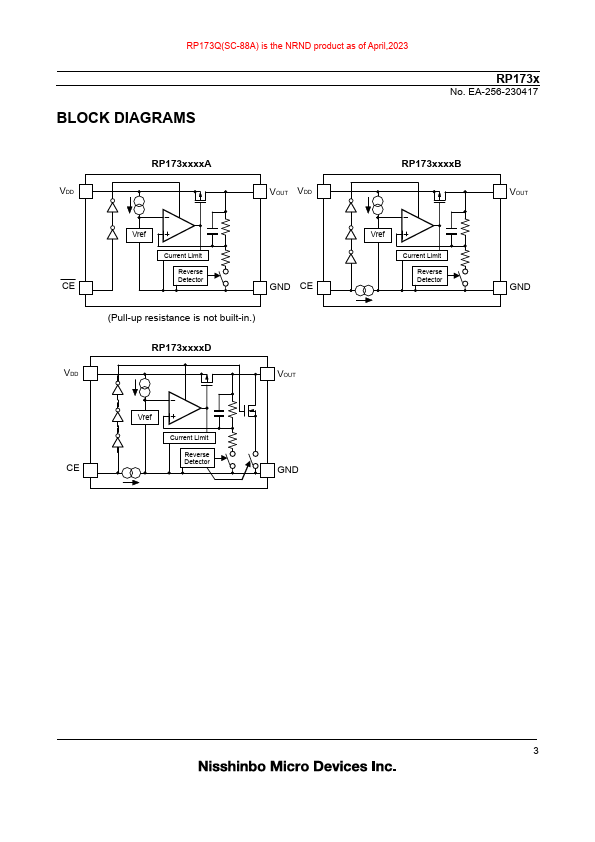

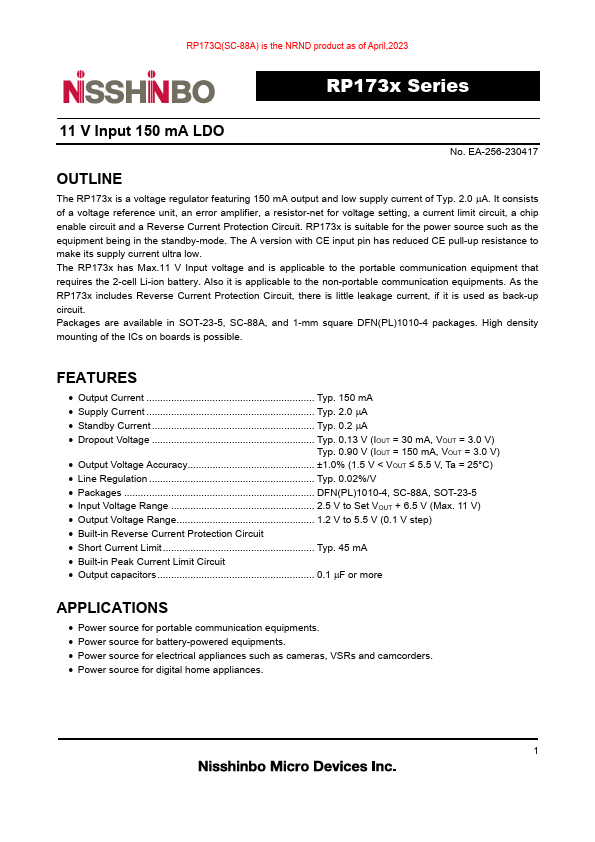

Features

Output Current Typ. 150 mA.
Supply Current Typ. 2.0 µA.
Standby Current Typ. 0.2 µA.
Dropout Voltage Typ. 0.13 V (IOUT = 30 mA, VOUT = 3.0 V) Typ. 0.90 V (IOUT = 150 mA, VOUT = 3.0 V).
Output Voltage Accuracy ±1.0% (1.5 V < VOUT ≤ 5.5 V, Ta = 25°C).
Line Regulation Typ. 0.02%/V.
Packages DFN(PL)1010-4, SC-88A, SOT-23-5.
Input Voltage Range 2.5 V to Set VOUT + 6.5 V (Max. 11 V).
Output Voltage Range 1.2 V to.
