RP200N, RP200K - 3-MODE 300mA LDO REGULATOR

Name: RP200N
SKU: RP200N-1588028

Nisshinbo

The RP200N by Nisshinbo is a 3-MODE 300mA LDO REGULATOR. Below is the official datasheet preview.

Datasheet Details

Part number	RP200N, RP200K
Manufacturer	Nisshinbo
File Size	446.79 KB
Description	3-MODE 300mA LDO REGULATOR
Datasheet	RP200K-Nisshinbo.pdf
Note	This datasheet PDF includes multiple part numbers: RP200N, RP200K. Please refer to the document for exact specifications by model.

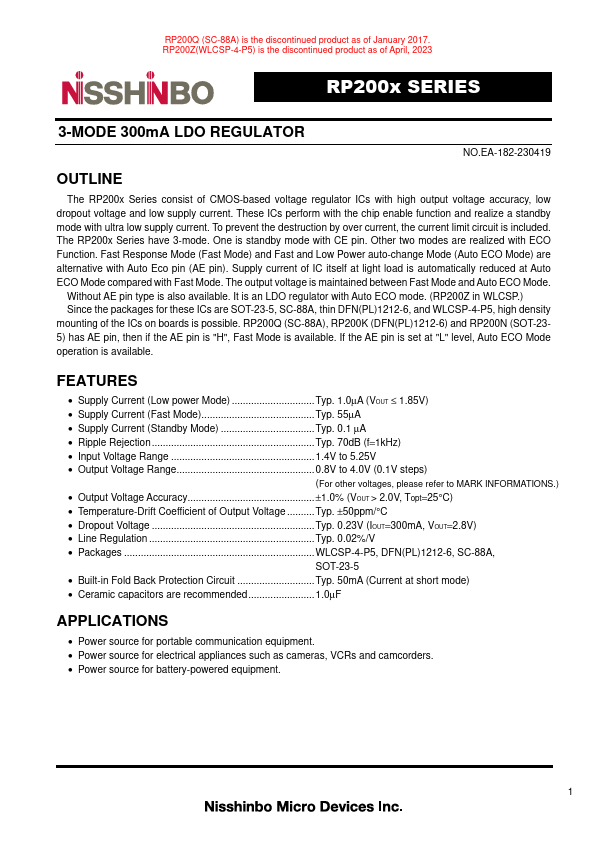

Additional preview pages of the RP200N datasheet.

Input Pin Output Pin Chip Enable Pin ("H" Active) Grou

Supply Current (Low power Mode) Typ. 1.0µA (VOUT ≤ 1.85V).
Supply Current (Fast Mode) Typ. 55µA.
Supply Current (Standby Mode) Typ. 0.1 µA.
Ripple Rejection Typ. 70dB (f=1kHz).
Input Voltage Range 1.4V to 5.25V.
Output Voltage Range 0.8V to 4.0V (0.1V steps) (For other voltages, please refer to MARK.
