RP201K - 3-MODE 150mA LDO REGULATOR

Nisshinbo

The RP201K by Nisshinbo is a 3-MODE 150mA LDO REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

RP201K 3-MODE 150mA LDO REGULATOR by Nisshinbo - Datasheet Preview — Official preview page of the **RP201K** 3-MODE 150mA LDO REGULATOR datasheet (Nisshinbo).

Datasheet Details

Part number	RP201K
Manufacturer	Nisshinbo
File Size	440.29 KB
Description	3-MODE 150mA LDO REGULATOR
Datasheet	RP201K-Nisshinbo.pdf

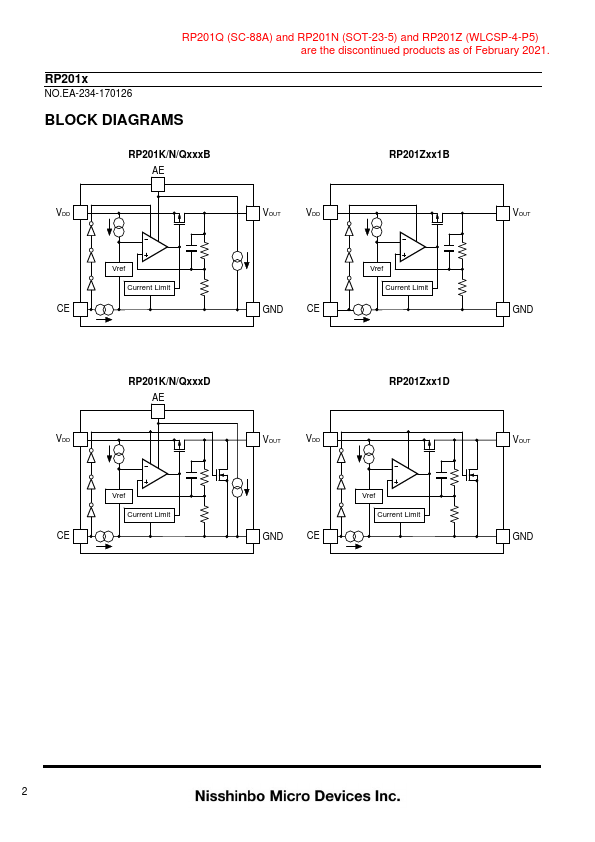

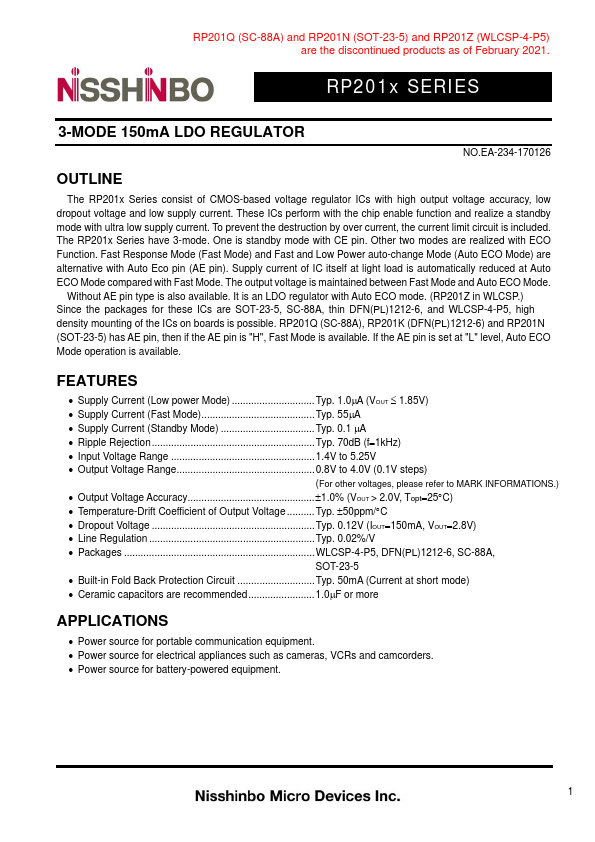

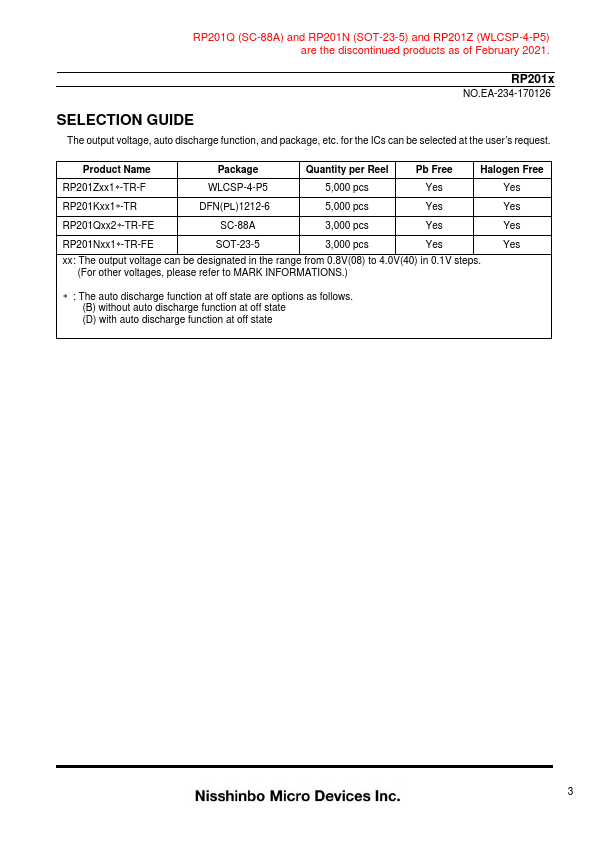

Additional preview pages of the RP201K datasheet.

RP201K Product details

Description

WLCSP-4-P5 Pin No Symbol A1 VDD A2 VOUT B1 CE B2 GND DFN(PL)1212-6 Pin No 1 2 3 4 5 6 Symbol AE GND CE VDD NC VOUT SC-88A Pin No 1 2 3 4 5 Symbol AE GND VOUT VDD CE SOT-23-5 Pin No 1 2 3 4 5 Symbol VDD GND CE AE VOUT RP201x NO.EA-234-170126 Pin Description Input Pin Output Pin Chip Enable Pin ("H" Active) Ground

Features

Supply Current (Low power Mode) Typ. 1.0A (VOUT1.85V).
Supply Current (Fast Mode) Typ. 55A.
Supply Current (Standby Mode) Typ. 0.1A.
Ripple Rejection Typ. 70dB (f1kHz).
Input Voltage Range 1.4V to 5.25V.
Output Voltage Range 0.8V to 4.0V (0.1V steps) (For other voltages, please refer to MARK.
