Description
WLCSP-4-P5
Pin No
Symbol
A1
VDD
A2
VOUT
B1
CE
B2
GND
DFN(PL)1212-6
Pin No 1 2 3 4 5 6
Symbol AE GND CE VDD NC VOUT
SC-88A
Pin No 1 2 3 4 5
Symbol AE GND VOUT VDD CE
SOT-23-5
Pin No 1 2 3 4 5
Symbol VDD GND CE AE VOUT
RP201x
NO.EA-234-170126
Pin Description Input Pin Output Pin Chip Enable Pin ("H" Active) Ground

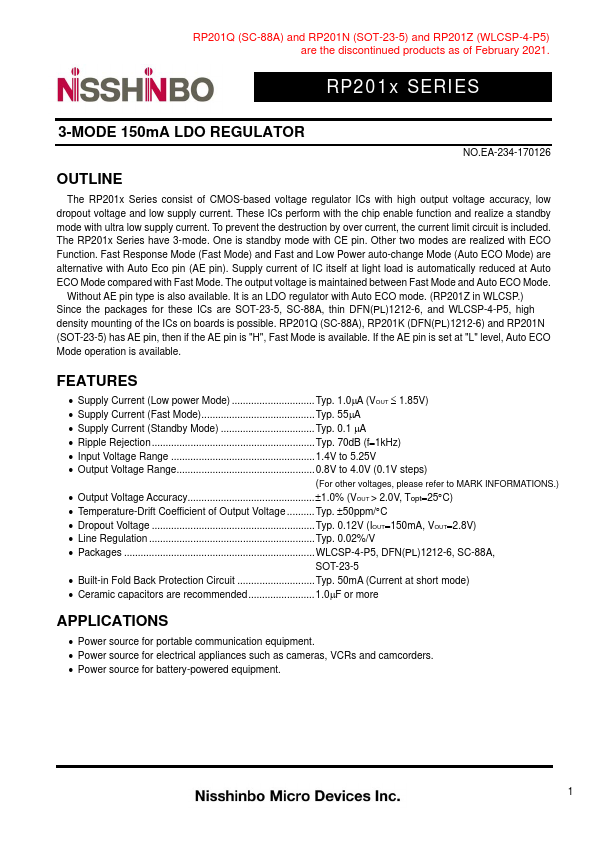

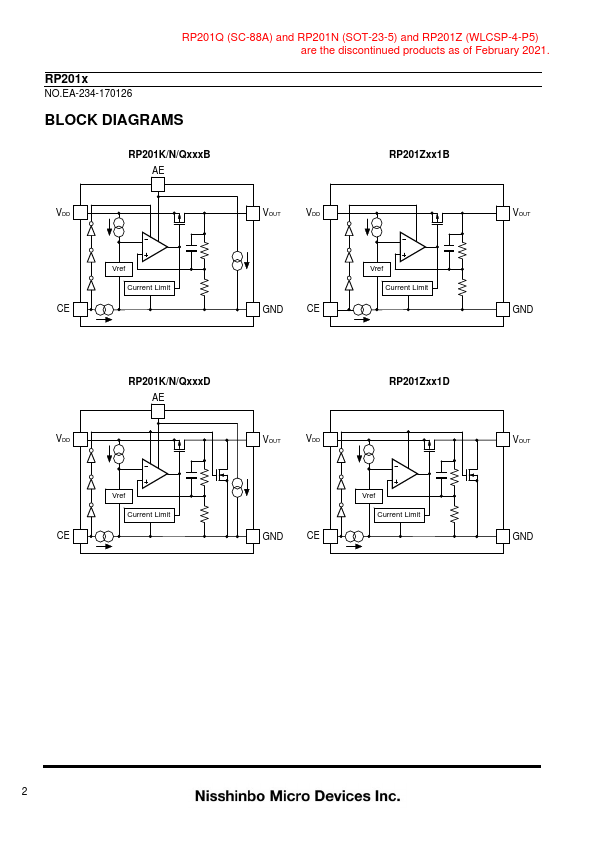

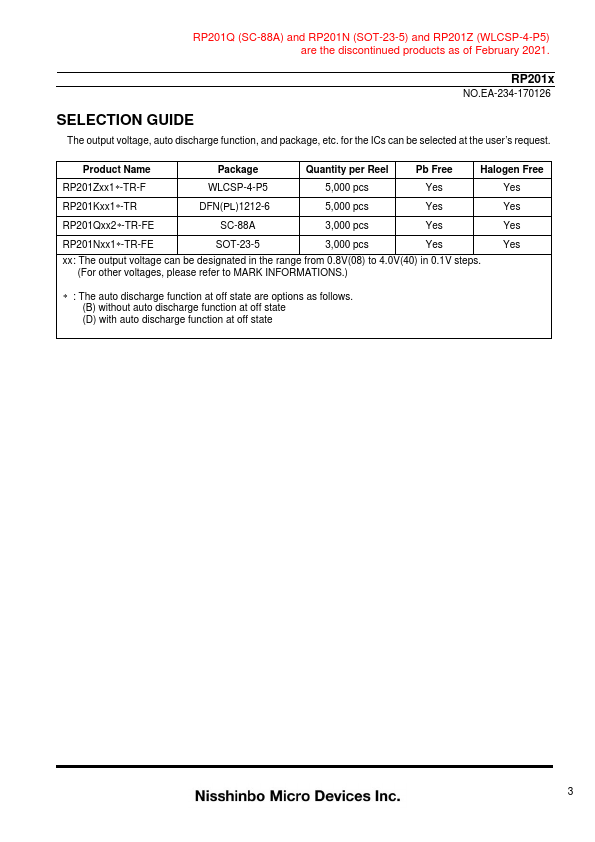

Features
- Supply Current (Low power Mode) Typ. 1.0A (VOUT1.85V).
- Supply Current (Fast Mode) Typ. 55A.
- Supply Current (Standby Mode) Typ. 0.1A.
- Ripple Rejection Typ. 70dB (f1kHz).
- Input Voltage Range 1.4V to 5.25V.
- Output Voltage Range 0.8V to 4.0V (0.1V steps)
(For other voltages, please refer to MARK.
