RP201Q, RP201K 3-MODE 150mA LDO REGULATOR

RP201Q Description

RP201Q (SC-88A) and RP201N (SOT-23-5) and RP201Z (WLCSP-4-P5) are the discontinued products as of February 2021.RP201x SERIES 3-MODE 150mA LDO REGUL.
WLCSP-4-P5 Pin No Symbol A1 VDD A2 VOUT B1 CE B2 GND. DFN(PL)1212-6 Pin No 1 2 3 4 5 6 Symbol AE GND CE VDD NC VOUT.

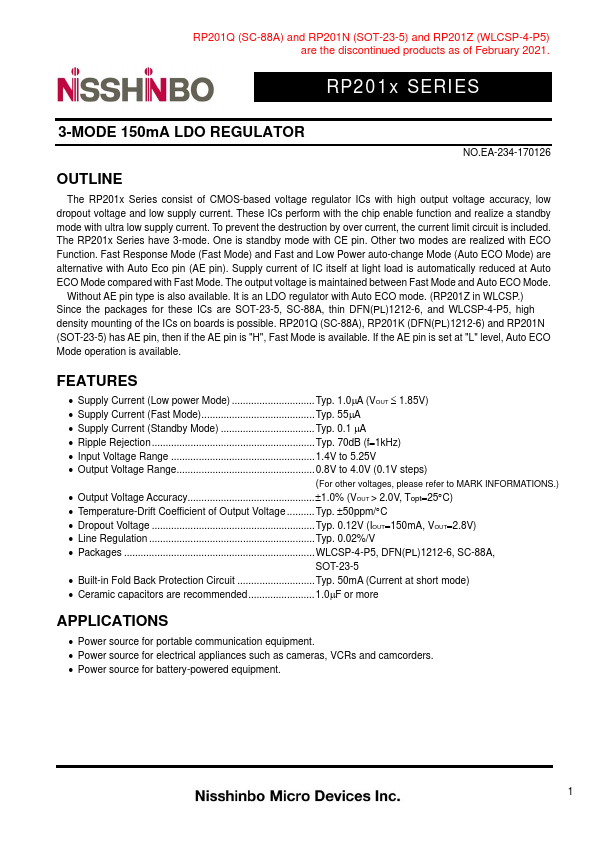

RP201Q Features

* Supply Current (Low power Mode) Typ. 1.0A (VOUT1.85V)
* Supply Current (Fast Mode) Typ. 55A
* Supply Current (Standby Mode) Typ. 0.1A
* Ripple Rejection Typ. 70dB (f1kHz)
* Input Voltage Range 1.4V to 5.25V
* Output Voltage Range 0.8V to 4.0V (0.1V steps) (For ot

RP201Q Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipment. 1 RP201Q (SC-88A) and RP201N (SOT-23-5) and RP201Z (WLCSP-4-P5) are the discontinued products as of February

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP201Q, RP201K. Please refer to the document for exact specifications by model.

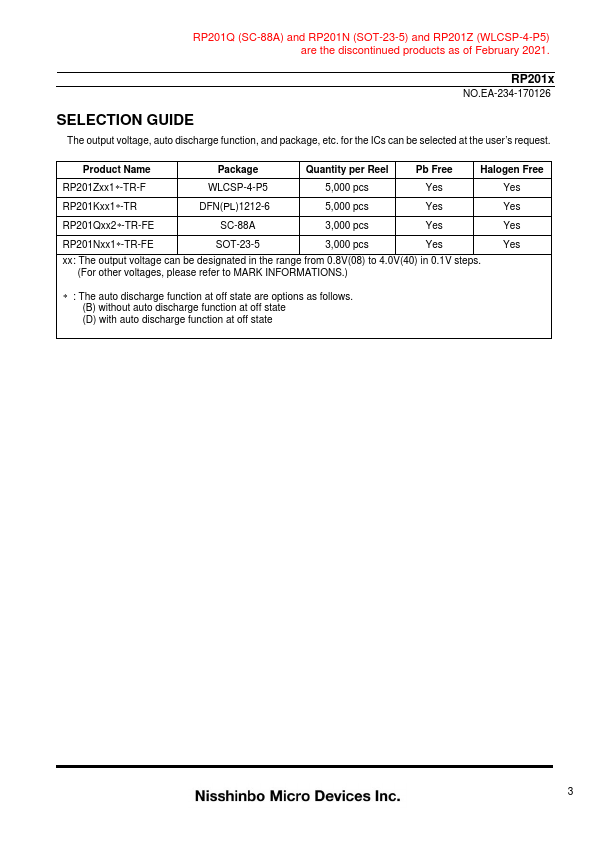

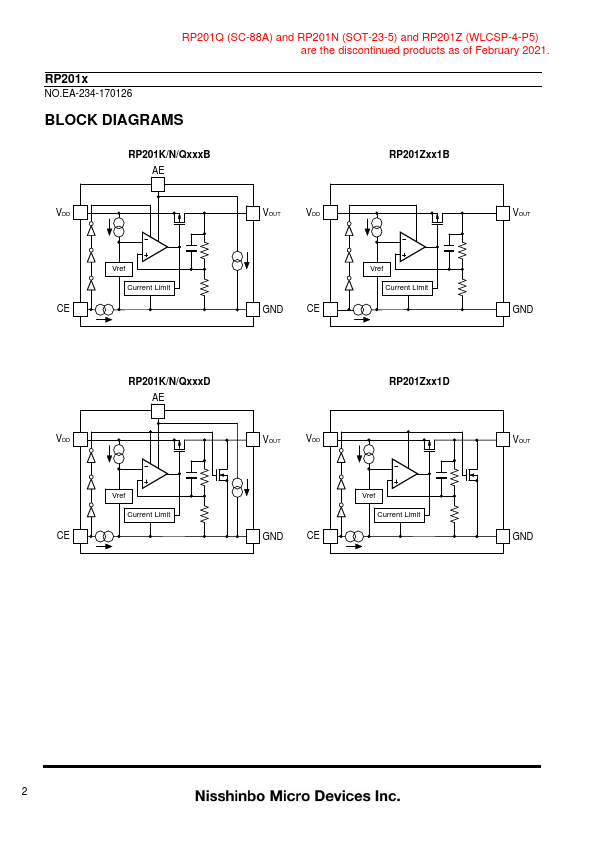

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP201Q, RP201K
Manufacturer
Nisshinbo
File Size
440.29 KB
Datasheet
RP201K-Nisshinbo.pdf
Description
3-MODE 150mA LDO REGULATOR
Note
This datasheet PDF includes multiple part numbers: RP201Q, RP201K.
Please refer to the document for exact specifications by model.
