NRF24L01 Single Chip 2.4GHz Transceiver

NRF24L01 Description

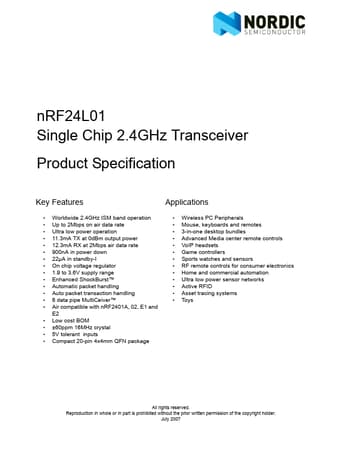

nRF24L01 Single Chip 2.4GHz Transceiver Product Specification Key .
Restructured layout in a new template. Added details of the following features: X Dynamic Payload Length (DPL) X Acknowledgement Pa.

NRF24L01 Applications

* Worldwide 2.4GHz ISM band operation
* Up to 2Mbps on air data rate
* Ultra low power operation
* 11.3mA TX at 0dBm output power
* 12.3mA RX at 2Mbps air data rate
* 900nA in power down
* 22µA in standby-I
* On chip voltage regulator

📥 Download Datasheet

Preview of NRF24L01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NRF24L01
Manufacturer
Nordic
File Size
1.00 MB
Datasheet
NRF24L01-Nordic.pdf
Description
Single Chip 2.4GHz Transceiver
