nRF51802

Multiprotocol Bluetooth low energy/2.4GHz RF SOC

nRF51802 Features

* Applications

* 2.4 GHz transceiver

* -91 dBm sensitivity in Bluetooth® low energy mode

* 250 kbps, 1 Mbps, 2 Mbps supported data rates

* TX Power -20 to +4 dBm in 4 dB steps

* TX Power -35 dBm Whisper mode

* 13 mA peak RX, 10.5 mA peak TX (0 dBm)

nRF51802 General Description

This product specification contains target specifications for product development. This product specification contains preliminary data; supplementary data may be published from Nordic Semiconductor ASA later. This product specification contains final product specifications. Nordic Semiconductor ASA.

nRF51802 Datasheet (5.15 MB)

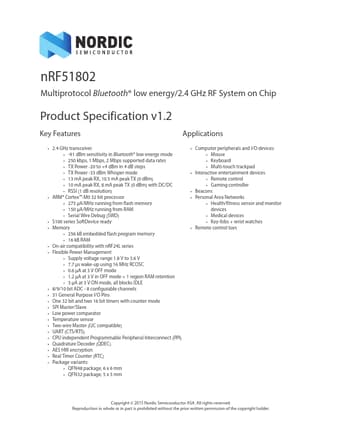

Preview of nRF51802 PDF

Datasheet Details

Part number:

nRF51802

Manufacturer:

Nordic

File Size:

5.15 MB

Description:

Multiprotocol bluetooth low energy/2.4ghz rf soc.
