NT6827 - I2C Bus Controlled On-Screen Display

NT6827 Description

NT6827 I2C Bus Controlled On-Screen Display .
NT6827 is designed for displaying symbols and characters onto a CRT monitor.

NT6827 Features

* n I2C Bus Interface with Slave Address $7A (Transmitter) & $7B (Receiver) n Horizontal Frequency Range: 30KHz ~ 120KHz n Flexible Display Resolution Up to 1524 Dots/Row n Internal PLL Generates a Stable and Wide-Range System Clock (96MHz) n OSD Screen Consists of Character Array of 15 Rows by 30 Col

NT6827 Applications

* such as: adjustment of the OSD windows position, built-in 256 ROM & 16 Multi-color fonts, variable character height with row-to-row spacing adjustment, 8 color selections & 7 background color controls for each character, double height/width controls for each row, 4 overlapping windows available wit

📥 Download Datasheet

Preview of NT6827 PDF

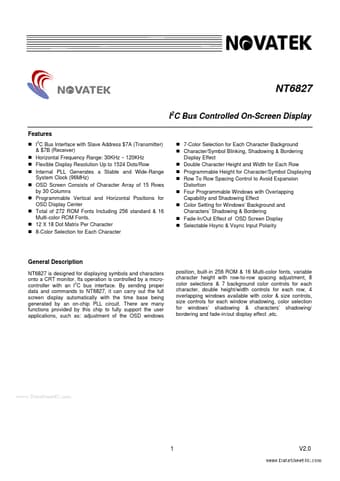

datasheet Preview Page 2 datasheet Preview Page 3
