JS28F512M29EWLx, JS28F512M29EWHx - 3 V supply flash memory

Numonyx

📥 Download Datasheet

JS28F512M29EWLx Datasheet Preview — This datasheet PDF includes multiple part numbers: JS28F512M29EWLx, JS28F512M29EWHx. Please refer to the document for exact specifications by model.

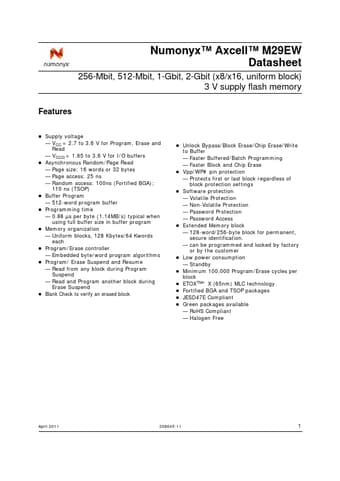

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JS28F512M29EWLx, JS28F512M29EWHx
Manufacturer	Numonyx
File Size	2.20 MB
Description	3 V supply flash memory
Datasheet	JS28F512M29EWHx_Numonyx.pdf
Note	This datasheet PDF includes multiple part numbers: JS28F512M29EWLx, JS28F512M29EWHx. Please refer to the document for exact specifications by model.

JS28F512M29EWLx Product details

Description

. . . . .

Features

Supply voltage.
VCC = 2.7 to 3.6 V for Program, Erase and Read.
VCCQ = 1.65 to 3.6 V for I/O buffers Asynchronous Random/Page Read.
Page size: 16 words or 32 bytes.
Page access: 25 ns.
Random access: 100ns (Fortified BGA); 110 ns (TSOP) Buffer Program.
512-word program buffer Programming time.
0.88 µs per byte (1.14MB/s) typical when using full buff.
