NAU8820

Low Power 24-Bit Stereo Audio Codec

NAU8820 Features

* DAC: 94dB SNR and -84dB THD (“A” weighted)

* ADC: 90dB SNR and -80dB THD (“A” weighted)

* Integrated head-phone driver: 40mW into 16Ω

* Integrated programmable microphone amplifier

* Integrated line input and high current line output

* On-chip PLL

* Integrated DSP with

NAU8820 General Description

The NAU8820 is a low power, high quality CODEC for portable applications. In addition to precision 24-bit stereo ADCs and DACs, this device integrates a broad range of additional functions to simplify implementation of complete audio system solutions. The NAU8820 includes drivers for headphones, and.

NAU8820 Datasheet (1.03 MB)

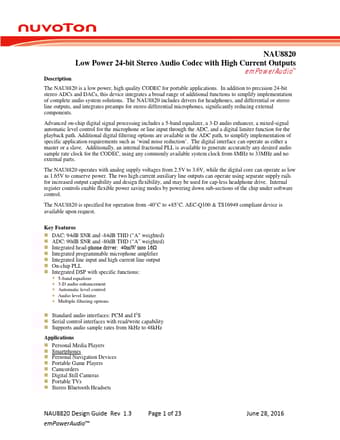

Preview of NAU8820 PDF

Datasheet Details

Part number:

NAU8820

Manufacturer:

Nuvoton Technology

File Size:

1.03 MB

Description:

Low power 24-bit stereo audio codec.
