W682510

(W682510 / W682310) Dual-Channel Voiceband Codecs

Nuvoton Technology

W682510 Features

* Single power supply o 4.5V to 5.5V (W682510) o 2.7V to 3.8V (W682310) Typical power dissipation of 35 mW, power-down mode of 5 μW Fully-differential analog circuit design On-chip precision referenceo W682510: 1.73V for a 0.8 dBm 0TLP at 600 Ω o W682310: 1.41V

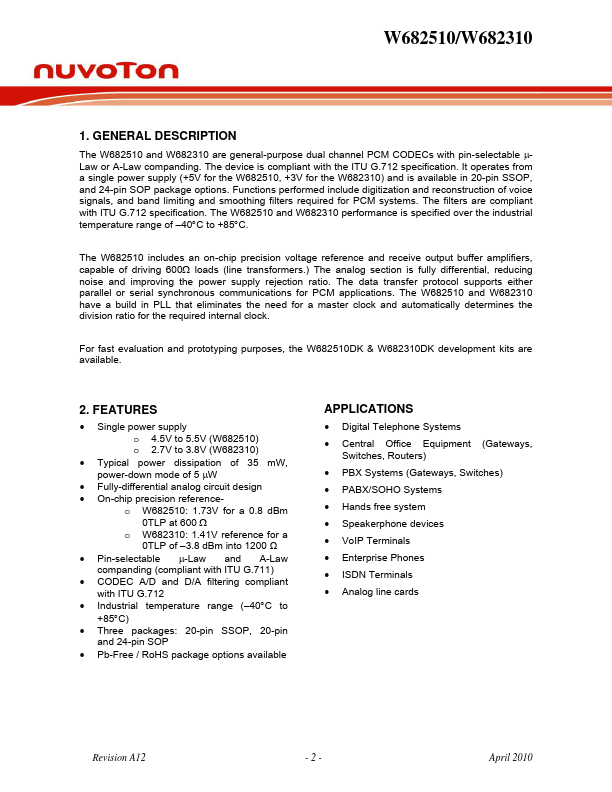

W682510 General Description

The W682510 and W682310 are general-purpose dual channel PCM CODECs with pin-selectable μLaw or A-Law companding. The device is compliant with the ITU G.712 specification. It operates from a single power supply (+5V for the W682510, +3V for the W682310) and is available in 20-pin SSOP, and 24-pin SO.

W682510 Datasheet (408.51 KB)

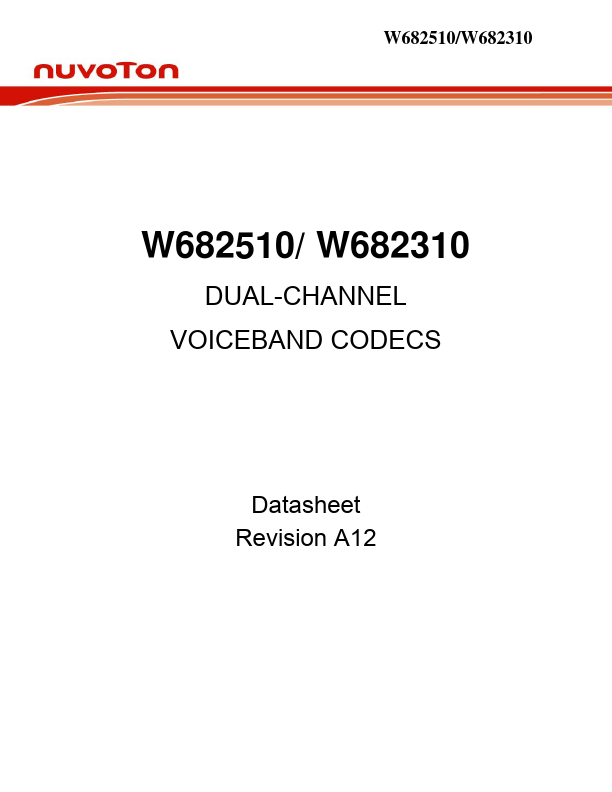

W682510 Datasheet Preview — Preview of W682510 PDF

Datasheet Details

Part number:

W682510

Manufacturer:

Nuvoton Technology

File Size:

408.51 KB

Description:

(w682510 / w682310) dual-channel voiceband codecs.

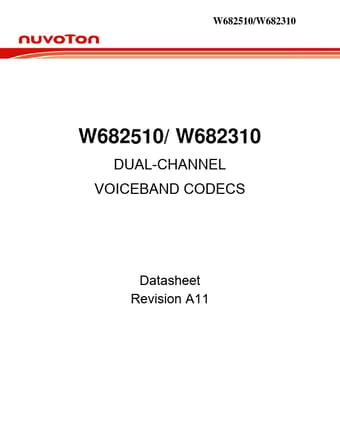

W682510/W682310 W682510/ W682310 DUAL-CHANNEL VOICEBAND CODECS www.DataSheet.co.kr Datasheet Revision A11 Datasheet pdf - http://www.DataSheet4U.ne.
