OZ8953AA-1, OZ8953, 5 Cell Li-Ion/Polymer Battery Pack Protection IC

Controlled Recipient #151245 printed on 7/7/2011.Updates will be provided to registered recipients.OZ8953 5 Cell Li-Ion/Polymer Battery Pack Protec.
OZ8953 is a highly integrated, low cost, battery pack protection and monitor IC which features Over Voltage (OV), Under Voltage (UV), Over Current (OC.

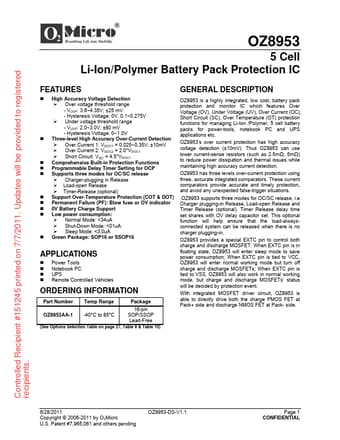

datasheet Preview Page 1 from Datasheet4u.com

OZ8953-O2Micro.pdf

OZ8953AA-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: OZ8953AA-1, OZ8953. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OZ8953AA-1, OZ8953

Manufacturer:

O2Micro

File Size:

551.15 KB

Description:

5 Cell Li-Ion/Polymer Battery Pack Protection IC

Note:

This datasheet PDF includes multiple part numbers: OZ8953AA-1, OZ8953.
Please refer to the document for exact specifications by model.

Features

* High Accuracy Voltage Detection ¾ Over voltage threshold range - VOVP: 3.6~4.35V; ±25 mV - Hysteresis Voltage: 0V, 0.1~0.275V ¾ Under voltage threshold range - VUVP: 2.0~3.0V; ±80 mV - Hysteresis Voltage: 0~1.0V
* Three-level High Accuracy Over-Current Detection ¾ Over Current 1: V

Applications

* Power Tools
* Notebook PC
* UPS
