OSP12N60C Datasheet, Mosfet, OCENME

OSP12N60C Features

  • Mosfet
  • 12.0A, 600V, RDS(on) = 0.650Ω @VGS = 10 V
  • Low gate charge ( typical 52nC)
  • High ruggedness
  • Fast switching
  • 100% avalanche tested

PDF File Details

Part number:

OSP12N60C

Manufacturer:

OCENME

File Size:

286.30kb

Download:

📄 Datasheet

Description:

600v n-channel mosfet. This Power MOSFET is produced using oTcrueensmeem‘si‘s advanced planar stripe DMOS technology. This advanced technology has been espe

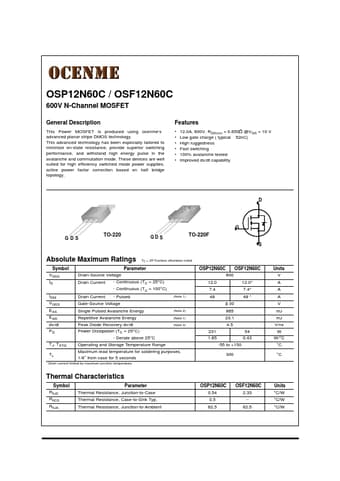

Datasheet Preview: OSP12N60C 📥 Download PDF (286.30kb)
Page 2 of OSP12N60C Page 3 of OSP12N60C

TAGS

OSP12N60C
600V
N-Channel
MOSFET
OCENME
