OUDH-SH, OUDH - Sealed PC Board Relay

📥 Download Datasheet

OUDH-SH Datasheet Preview — This datasheet PDF includes multiple part numbers: OUDH-SH, OUDH. Please refer to the document for exact specifications by model.

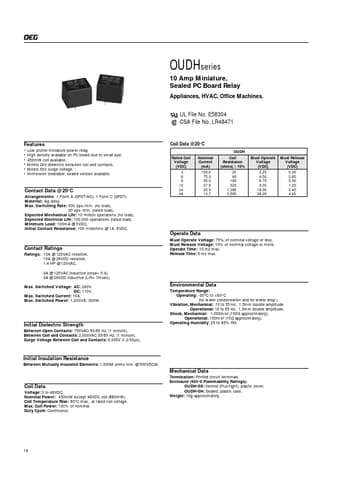

datasheet Preview Page 2

Datasheet Details

Part number	OUDH-SH, OUDH
Manufacturer	OEG
File Size	88.80 KB
Description	Sealed PC Board Relay
Datasheet	OUDH_OEG.pdf
Note	This datasheet PDF includes multiple part numbers: OUDH-SH, OUDH. Please refer to the document for exact specifications by model.

OUDH-SH Product details

Features

Low profile miniature power relay.
High density available on PC board due to small size.
450mW coil available.
Meets 2kV dielectric between coil and contacts.
Meets 5kV surge voltage.
Immersion cleanable, sealed version available. Coil Data @ 20°C OUDH Rated Coil Voltage (VDC) 3 6 9 12 24 48 Nominal Current (mA) 150.0 75.0 50.0 37.5 20.9 13.7 Coil Resistance (ohms) ± 10% 20 80 180 320 1,280 3,500 Must Operate Voltage (VDC) 2.25 4.50 6.7.
