82C51A - UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER TRANSMITTER

Product Overview

OKI electronic componets

📥 Download Datasheet

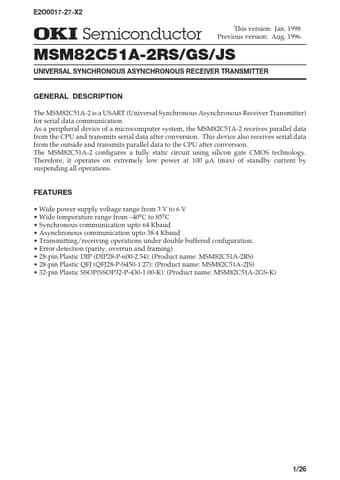

82C51A UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER TRANSMITTER by OKI electronic componets - Datasheet Preview — Datasheet preview – 82C51A

Datasheet Details

Part number	82C51A
Manufacturer	OKI electronic componets
File Size	203.40 KB
Description	UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER TRANSMITTER
Datasheet	82C51A Datasheet
Additional preview pages of the 82C51A datasheet.

Product details

Description

The MSM82C51A-2 is a USART (Universal Synchronous Asynchronous Receiver Transmitter) for serial data communication.

Features

Wide power supply voltage range from 3 V to 6 V.
Wide temperature range from.
40°C to 85°C.
Synchronous communication upto 64 Kbaud.
Asynchronous communication upto 38.4 Kbaud.
Transmitting/receiving operations under double buffered configuration.
Error detection (parity, overrun and framing).
28-pin Plastic DIP (DIP28-P-600-2.54): (Product name: MSM82C51A-2RS).
28-pin Plastic QFJ (QFJ28-P-S450-1.27): (Product name.
