ML2201 Datasheet - OKI electronic componets

Speech Synthesizer LSI with on-chip 384K Mask ROM

ML2201 Features

* Sampling Frequency (Selectable for each single phrase) 4.0/5.3/6.4/8.0/10.6/12.8/16.0 kHz

* On-chip 384 Kbit Mask ROM

* Maximum Playback Time (At fEXTCLK = 4.096 MHz) 12.0 sec At fSAM = 4.0 kHz 6.0 sec At fSAM = 8.0 kHz 3.0 sec At fSAM = 16.0 kHz

* External Clock Fr

ML2201 General Description

The ML2201 is a PCM-based speech synthesizer LSI having an on-chip 384K Mask ROM, D/A Converter and Low Pass Filter. Utilizing the serial interface enables smaller footprint packaging, which makes the chip an ideal choice for a pre-recorded message subsystem used with today’s size-critical applicati.

ML2201 Datasheet (159.44 KB)

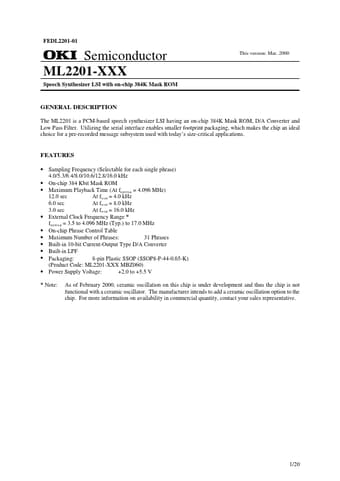

ML2201 Datasheet Preview — Preview of ML2201 PDF

Datasheet Details

Part number:

ML2201

Manufacturer:

OKI electronic componets

File Size:

159.44 KB

Description:

Speech synthesizer lsi with on-chip 384k mask rom.
