ML671000 - CMOS 32-Bit Single-Chip Microcontroller

OKI electronic componets

Datasheet Details

Part number	ML671000
Manufacturer	OKI electronic componets
File Size	311.79 KB
Description	CMOS 32-Bit Single-Chip Microcontroller
Datasheet	ML671000_OKIelectroniccomponets.pdf

This version: Jul.

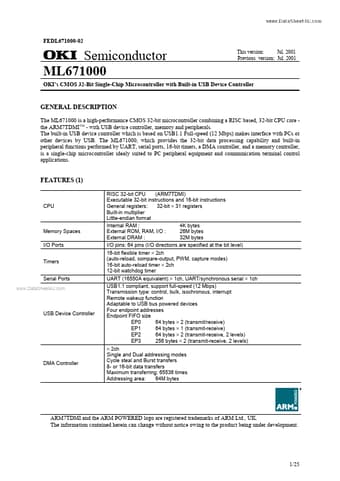

(1) RISC 32-bit CPU (ARM7TDMI) Executable 32-bit instructions and 16-bit instructions General registers: 32-bit × 31 registers Built-in multiplier Little-endian format Internal RAM : 4K bytes External ROM, RAM, I/O : 26M bytes External DRAM : 32M bytes I/O pins: 64 pins (I/O directions are specified at the bit level) 16-bit flexible timer × 2ch (auto-reload, compare-output, PWM, capture modes) 16-bit auto-reload timer × 2ch 12-bit watchdog timer UART (16550A equivalent) × 1ch, UART/synchronous s.
