ML7000-01 Datasheet - OKI electronic componets

Single Rail CODEC

ML7000-01 Features

* Single power supply: +5 V (ML7000-xx) +3 V (ML7001-xx)

* Low power consumption Operating mode: 25 mW Typ. VDD = 5.0 V (ML7000-xx) 20 mW Typ. VDD = 3.0 V (ML7001-xx) Power-down mode: 0.05 mW Typ. VDD = 5.0 V (ML7000-xx) 0.03 mW Typ. VDD = 3.0 V (ML7001-xx)

* Conforms to ITU-

ML7000-01 General Description

The ML7000/ML7001 are single-channel CMOS CODEC LSI devices for voice signals ranging from 300 to 3400 Hz with filters for A/D and D/A conversion. Designed especially for a single-power supply and low-power applications, the devices are optimized for ISDN terminals, digital wireless systems, and dig.

ML7000-01 Datasheet (144.88 KB)

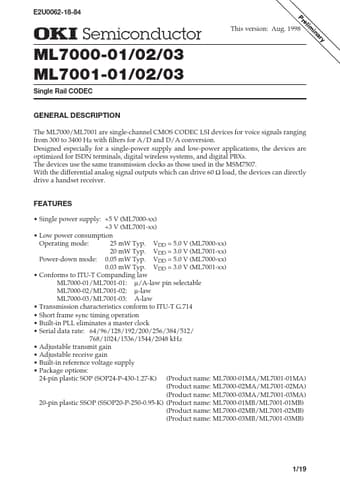

Preview of ML7000-01 PDF

Datasheet Details

Part number:

ML7000-01

Manufacturer:

OKI electronic componets

File Size:

144.88 KB

Description:

Single rail codec.
E2U0062-18-84 ¡ Semiconductor ML7000-01/02/03 ML7001-01/02/03 ¡ Semiconductor Single Rail CODEC This version: Aug. 1998 ML7000-01/02/03/ML7001-01/02.
