MSM511000C - DRAM / FAST PAGE MODE TYPE

Datasheet Summary

Description

The MSM511000C/CL is a 1,048,576-word

1-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

Features

  • 1,048,576-word.
  • 1-bit configuration.
  • Single 5 V power supply, ± 10% tolerance.
  • Input : TTL compatible, low input capacitance.
  • Output : TTL compatible, 3-state.
  • Refresh : 512 cycles/8 ms, 512 cycles/64 ms (L-version).
  • Fast page mode, read modify write capability.
  • CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
  • Package options: 26/20-pin 300 mil plastic SOJ (SOJ26/20-P-300-1.27) (Product : MSM511000C.

📥 Download Datasheet

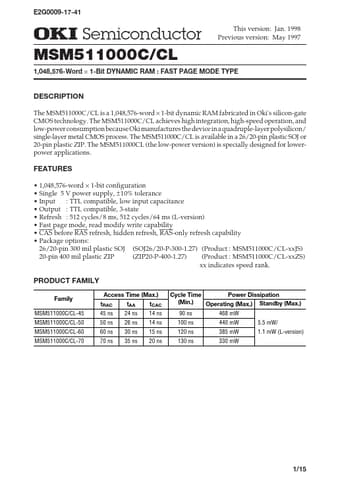

Datasheet preview – MSM511000C

Datasheet Details

Part number MSM511000C
Manufacturer OKI electronic componets
File Size 224.04 KB
Description DRAM / FAST PAGE MODE TYPE
Datasheet download datasheet MSM511000C Datasheet
Additional preview pages of the MSM511000C datasheet.

📁 Similar Datasheet

Other Datasheets by OKI electronic componets

Full PDF Text Transcription

Click to expand full text
E2G0009-17-41 ¡ Semiconductor MSM511000C/CL ¡ Semiconductor This version: Jan. 1998 MSM511000C/CL Previous version: May 1997 1,048,576-Word ¥ 1-Bit DYNAMIC RAM : FAST PAGE MODE TYPE DESCRIPTION The MSM511000C/CL is a 1,048,576-word ¥ 1-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM511000C/CL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ single-layer metal CMOS process. The MSM511000C/CL is available in a 26/20-pin plastic SOJ or 20-pin plastic ZIP. The MSM511000CL (the low-power version) is specially designed for lowerpower applications.
