MSM5116405C - DRAM / FAST PAGE MODE TYPE

OKI electronic componets

The MSM5116405C by OKI electronic componets is a DRAM / FAST PAGE MODE TYPE. Below is the official datasheet preview.

📥 Download Datasheet

MSM5116405C DRAM / FAST PAGE MODE TYPE by OKI electronic componets - Datasheet Preview — Official preview page of the MSM5116405C DRAM / FAST PAGE MODE TYPE datasheet (OKI electronic componets).

Datasheet Details

Part number	MSM5116405C
Manufacturer	OKI electronic componets
File Size	679.16 KB
Description	DRAM / FAST PAGE MODE TYPE
Datasheet	MSM5116405C_OKI.pdf

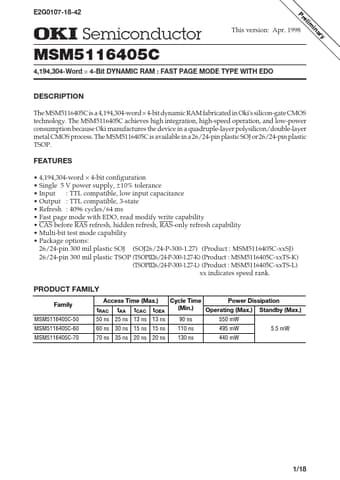

Additional preview pages of the MSM5116405C datasheet.

MSM5116405C Product details

Description

The MSM5116405C is a 4,194,304-word 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

Features

4,194,304-word.
4-bit configuration.
Single 5 V power supply, ± 10% tolerance.
Input : TTL compatible, low input capacitance.
Output : TTL compatible, 3-state.
Refresh : 4096 cycles/64 ms.
Fast page mode with EDO, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Multi-bit test mode capability.
Package options: 26/24-pin 300 mil plastic SOJ (SOJ26/24-P-300-1.27).
