MSM514256CL, MSM514256C - DRAM / FAST PAGE MODE TYPE

OKI electronic componets

The MSM514256CL by OKI electronic componets is a DRAM / FAST PAGE MODE TYPE. Below is the official datasheet preview.

Datasheet Details

Part number	MSM514256CL, MSM514256C
Manufacturer	OKI electronic componets
File Size	258.24 KB
Description	DRAM / FAST PAGE MODE TYPE
Datasheet	MSM514256C_OKI.pdf
Note	This datasheet PDF includes multiple part numbers: MSM514256CL, MSM514256C. Please refer to the document for exact specifications by model.

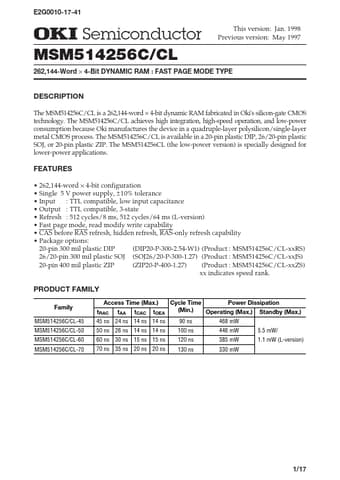

Additional preview pages of the MSM514256CL datasheet.

The MSM514256C/CL is a 262,144-word 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

262,144-word.
4-bit configuration.
Single 5 V power supply, ± 10% tolerance.
Input : TTL compatible, low input capacitance.
Output : TTL compatible, 3-state.
Refresh : 512 cycles/8 ms, 512 cycles/64 ms (L-version).
Fast page mode, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Package options: 20-pin 300 mil plastic DIP (DIP20-P-300-2.54-W1) (Product : MSM514256C/CL-x.
