OL3204N-100P Datasheet, Profile, OKI electronic componets

OL3204N-100P Features

• Profile
• Fiber output power: Pf=100 mW (pulse width 10 ms, duty ratio 1 %)
• Cooled DIL Package, 9mm hight APPLICATIONS
• Optical measurement equipment
• OTDR

PDF File Details

Part number:

OL3204N-100P

Manufacturer:

OKI electronic componets

File Size:

44.61kb

Download:

📄 Datasheet

Description:

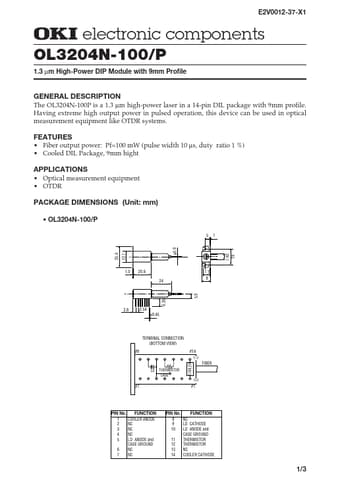

1.3 mm high-power dip module with 9mm profile. The OL3204N-100P is a 1.3 mm high-power laser in a 14-pin DIL package with 9mm profile. Having extreme high output power in pulsed op

OL3204N-100P Application

• Applications
• Optical measurement equipment
• OTDR PACKAGE DIMENSIONS (Unit: mm)
• OL3204N-100/P 5 f0.9 1 25.4 12.7 1.
